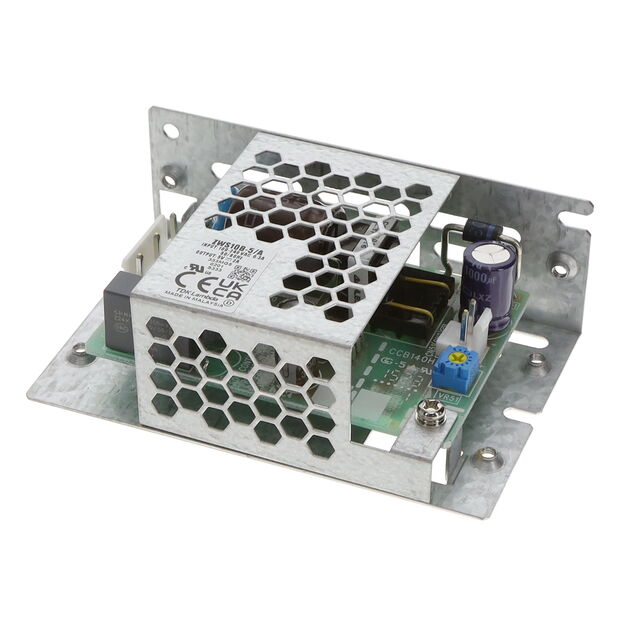

ZWS10B-5/A

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 10 W, 5 V, 2 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Declaration of Conformity EN +1

ZWS10B-5/A

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 10 W, 5 V, 2 A

Deep-Dive with AI

DocumentsDatasheet Declaration of Conformity EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZWS10B-5/A

Applications	ITE (Commercial)
Approval Agency	UKCA, CE
Current - Output 1	2 A
Efficiency	78 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	10 W
Standard Number	60950-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	370 VDC, 265 VAC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

ZWS10B Series

Part	Power (Watts)	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Mounting Type	Applications	Number of Outputs	Type	Voltage - Output 1	Features	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
TDK-LAMBDA ZWS10B-5/A	10 W	78 %	265 VAC 370 VDC	85 VAC 120 VDC	60950-1 62368-1	Chassis Mount	ITE (Commercial)	1	Enclosed	5 V	Adjustable Output Universal Input	3000 V	-10 °C	70 °C	CE UKCA	2 A
TDK-LAMBDA ZWS10B-24/A	12 W	85 %	265 VAC 370 VDC	85 VAC 120 VDC	60950-1 62368-1	Chassis Mount	ITE (Commercial)	1	Enclosed	24 V	Adjustable Output Universal Input	3000 V	-10 °C	70 °C	CE UKCA	500 mA
TDK-LAMBDA ZWS10B-12/A
TDK-LAMBDA ZWS10B-3/A	6.6 W	70 %	265 VAC 370 VDC	85 VAC 120 VDC		Chassis Mount	ITE (Commercial)	1	Enclosed	3.3 V	Adjustable Output Universal Input	3000 V	-10 °C	70 °C	CE	2 A	1.97 "	73.5 mm	0.87 in	2.89 in	22 mm	50 mm
TDK-LAMBDA ZWS10B-15/A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.92
		10	$ 30.20
		25	$ 28.66
		50	$ 27.42
Newark	Each	1	$ 32.92
		10	$ 30.20
		25	$ 28.66
		50	$ 27.42

Description

General part information

ZWS10B Series

ZWS10B-5/A is a ZWS10-30B series single output, high reliability power supply. It is used in a wide range of applications where equipment down-time cannot be tolerated during years of operation. Globally, process control, machinery, semiconductor fabrication and test and measurement equipment manufacturers depend upon the ZWS-B to provide a reliable source of power. Conservatively rated electrolytic capacitor temperatures offer improved field life-time of up to 10 years. It includes overcurrent and overvoltage protection. Application includes industrial, test, communication, broadcast. Certified by IEC/UL/CSA/EN62368-1, 60950-1, EN50178(OV II).

Documents

Technical documentation and resources

Datasheet

Declaration of Conformity EN

Datasheet

User Manual EN

Datasheet
