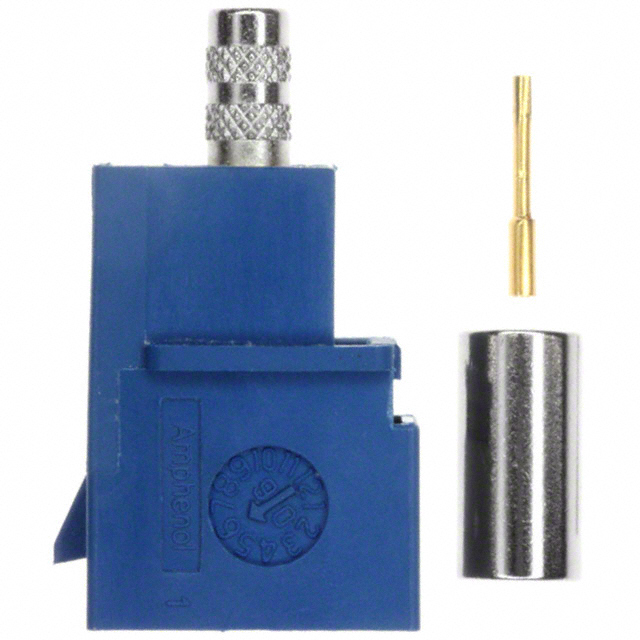

2FA1-NCSJ-C04-6
ActiveAmphenol RF
CONN FAKRA JACK STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2FA1-NCSJ-C04-6
ActiveAmphenol RF
CONN FAKRA JACK STR 50 OHM CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2FA1-NCSJ-C04-6 |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc Die Cast |
| Cable Group | 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | SMB, Fakra |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Latch Lock |
| Features | Code C |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Blue, Signal |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.3 dB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
fakra-generation-2 Series
| Part | Body Finish | Center Contact Material | Contact Termination | Features | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Frequency - Max [Max] | Housing Color | Fastening Type | Body Material | Mounting Type | Impedance | Dielectric Material | Number of Ports | Insertion Loss | Cable Group | Connector Type | Shield Termination | Center Contact Plating | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Nickel | Phosphor Bronze | Crimp | Code B | 100 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 6000 MHz | Cream | Latch Lock | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Female Socket Jack | Crimp | Gold | Fakra SMB |
Amphenol RF | Nickel | Phosphor Bronze | Crimp | Code C | 100 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 6000 MHz | Blue Signal | Latch Lock | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Female Socket Jack | Crimp | Gold | Fakra SMB |
Amphenol RF | Nickel | Brass | Crimp | Code Z | 115 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 4 GHz | Locking Ramp | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polymethylpentene (PMP) Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Male Pin Plug | Crimp | Gold | Fakra SMB | |
Amphenol RF | Tin | Brass | Solder | Code B | 165 °C | -65 ░C | 4 GHz | Cream | Locking Ramp | Zinc Die Cast | Through Hole Right Angle | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | Male Pin Plug | Solder | Gold | Fakra SMB | |||
Amphenol RF | Tin | Brass | Solder | Code D | 165 °C | -65 ░C | 4 GHz | Claret Violet | Locking Ramp | Zinc Die Cast | Through Hole Right Angle | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | Male Pin Plug | Solder | Gold | Fakra SMB | |||
Amphenol RF | Tin | Brass | Solder | Code L | 85 °C | -40 °C | 3 GHz | Carmine Red | Locking Ramp | Zinc Die Cast | Through Hole | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | Male Pin Plug | Solder | Gold | Fakra SMB | |||
Amphenol RF | Nickel | Phosphor Bronze | Crimp | Code D | 100 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 6000 MHz | Claret Violet | Latch Lock | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Female Socket Jack | Crimp | Gold | Fakra SMB |
Amphenol RF | Tin | Brass | Solder | Code H | 85 °C | -40 °C | 3 GHz | Heather Violet | Locking Ramp | Zinc Die Cast | Through Hole | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | Male Pin Plug | Solder | Gold | Fakra SMB | |||
Amphenol RF | Nickel | Phosphor Bronze | Crimp | Code A | 100 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 4 GHz | Black Jet | Latch Lock | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Female Socket Jack | Crimp | Gold | Fakra SMB |
Amphenol RF | Nickel | Brass | Crimp | Code A | 115 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 4 GHz | Black Jet | Locking Ramp | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polymethylpentene (PMP) Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Male Pin Plug | Crimp | Gold | Fakra SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
fakra-generation-2 Series
SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
