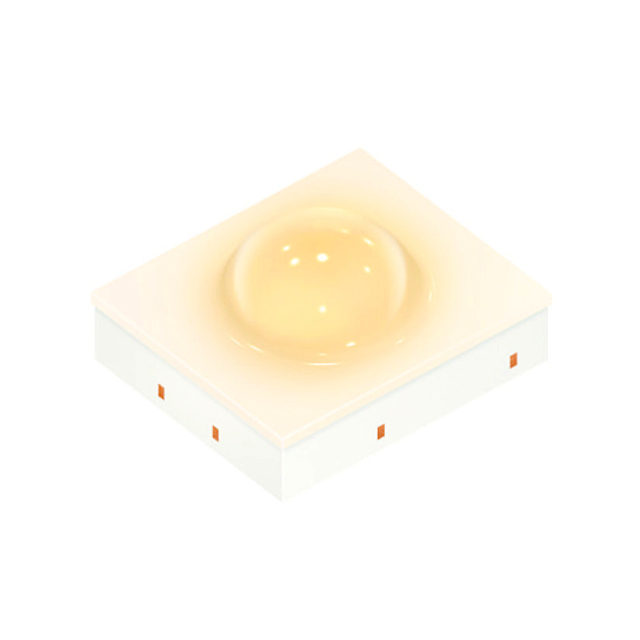

GW DASPA2.EC-HSHU-5R8T-1-100-R18

Active

ams-OSRAM USA INC.

LED OSCONIQ WARM WHT 3000K SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED OSCONIQ WARM WHT 3000K SMD

Technical Specifications

Parameters and characteristics for this part

Specification	GW DASPA2.EC-HSHU-5R8T-1-100-R18

Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	250 mA
Current - Test	100 mA
Flux @ 25°C, Current - Test	41 lm
Flux @ 25°C, Current - Test [Max]	45 lm
Flux @ 25°C, Current - Test [Min]	36 lm
Height - Seated (Max) [Max]	1.31 mm
Height - Seated (Max) [Max]	0.052 in
Lumens/Watt @ Current - Test	144 lm/W
Mounting Type	Surface Mount
Package / Case	1009 (2622 Metric)
Size / Dimension [x]	0.102 in
Size / Dimension [x]	2.6 mm
Size / Dimension [y]	2.2 mm
Size / Dimension [y]	0.087 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	14 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.85 V

Part	Package / Case	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [custom]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Max [Max]	Lumens/Watt @ Current - Test	Viewing Angle	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package	Color	Current - Test	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	CCT (K)
ams-OSRAM USA INC. GW DASPA2.EC-HSHU-5R8T-1-100-R18	1009 (2622 Metric)	2.85 V	14 °C/W	Surface Mount	1.31 mm	0.052 in	250 mA	144 lm/W	120 °	2.2 mm	0.087 in	0.102 in	2.6 mm	SMD	Warm White	100 mA	80	45 lm	36 lm	41 lm
ams-OSRAM USA INC. GW DASPA2.EC-HTJP-5H7I-1-100-R18	1009 (2622 Metric)	2.85 V	14 °C/W	Surface Mount	1.31 mm	0.052 in	250 mA	154 lm/W	120 °	2.2 mm	0.087 in	0.102 in	2.6 mm	SMD	Cool White	100 mA	80	48 lm	39 lm	44 lm	5000 K
ams-OSRAM USA INC. GW DASPA2.EC-HSHU-5O8Q-1-100-R18	1009 (2622 Metric)	2.85 V	14 °C/W	Surface Mount	1.31 mm	0.052 in	250 mA	144 lm/W	120 °	2.2 mm	0.087 in	0.102 in	2.6 mm	SMD	Warm White	100 mA	80	45 lm	36 lm	41 lm	3500 K
ams-OSRAM USA INC. GW DASPA2.EC-HRHT-5U8X-1-100-R18	1009 (2622 Metric)	2.85 V	14 °C/W	Surface Mount	1.31 mm	0.052 in	250 mA	123 lm/W	120 °	2.2 mm	0.087 in	0.102 in	2.6 mm	SMD	Warm White	100 mA	80			35 lm	2700 K
ams-OSRAM USA INC. GW DASPA2.EC-HTJP-5J7K-1-100-R18	1009 (2622 Metric)	2.85 V	14 °C/W	Surface Mount	1.31 mm	0.052 in	250 mA	154 lm/W	120 °	2.2 mm	0.087 in	0.102 in	2.6 mm	SMD	Neutral White	100 mA	80	48 lm	39 lm	44 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting OSCONIQ® P 2226 White, Warm 3000K 2.85V 100mA 120° 1009 (2622 Metric)
