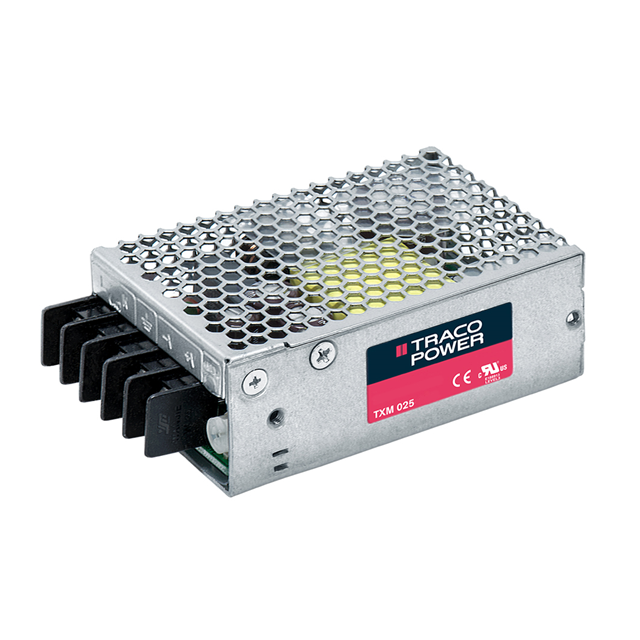

TXM 025-103

Active

Traco Power

AC/DC CONVERTER 3.3V 17W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 3.3V 17W

Technical Specifications

Parameters and characteristics for this part

Specification	TXM 025-103

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	5 A
Efficiency	71 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	17 W
Size / Dimension [x]	79 mm
Size / Dimension [x]	3.11 in
Size / Dimension [y]	51 mm
Size / Dimension [y]	2.01 in
Size / Dimension [z]	1.13 in
Size / Dimension [z]	28.8 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	3.3 V

Part	Voltage - Isolation	Features	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Power (Watts)	Approval Agency	Number of Outputs	Efficiency	Minimum Load Required	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Voltage - Output 1	Applications	Type
Traco Power TXM 025-103	3000 V	Adjustable Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	51 mm	79 mm	1.13 in	28.8 mm	2.01 in	3.11 in	Chassis Mount	17 W	CE cURus	1	71 %		-25 °C	70 °C	5 A	3.3 V	ITE (Commercial)	Enclosed
