CM23-1.9-01AC
ActiveMarlow Industries, Inc.
TEM 8.18X6.02X1.65MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CM23-1.9-01AC
ActiveMarlow Industries, Inc.
TEM 8.18X6.02X1.65MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CM23-1.9-01AC |
|---|---|
| Current - Max [Max] | 1.9 A |
| Delta Tmax @ Th | 71 °C, 27 °C |
| Features | Exterior Metallization (Both Sides), Lead Wires |
| Height [z] | 1.65 mm |
| Number of Stages | 1 |
| Qmax @ Th | 3.4 W |
| Resistance | 1.23 Ohms |
| Size / Dimension [x] | 8.18 mm |
| Size / Dimension [y] | 6.02 mm |
| Voltage - Max [Max] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 21.19 | |
| 5 | $ 19.89 | |||
| 10 | $ 19.41 | |||
| 25 | $ 18.70 | |||
| 50 | $ 18.23 | |||
| 100 | $ 17.76 | |||
Description
General part information
CM23-1 Series

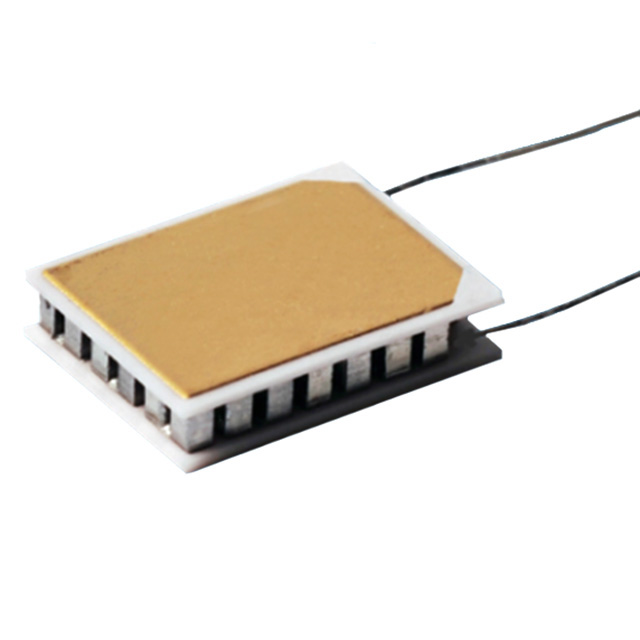

Peltier Module 3.4W @ 27°C 1.9 A 85°C
