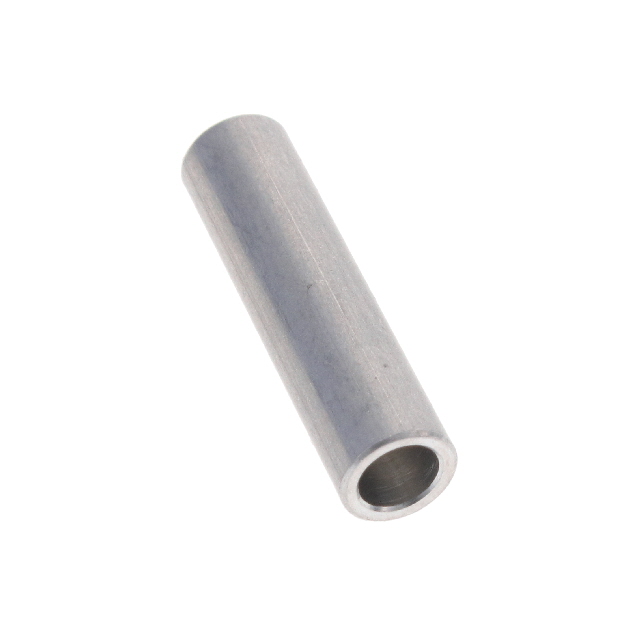

1136-8-AL
ActiveRAF Electronic Hardware
1/4 RD X 1.00 X .166 ID
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1136-8-AL
ActiveRAF Electronic Hardware
1/4 RD X 1.00 X .166 ID
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1136-8-AL |
|---|---|
| Between Board Height | 1 in |
| Between Board Height | 25.4 mm |
| Diameter - Inside [diameter] | 4.22 mm |
| Diameter - Inside [diameter] | 0.166 in |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Female |
| Length - Overall | 25.4 mm |
| Length - Overall | 1 " |
| Material | Aluminum |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.41 | |
| 5 | $ 0.35 | |||
| 10 | $ 0.29 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.21 | |||
Description
General part information
1136 Series
Round Spacer Unthreaded Aluminum 1.000" (25.40mm) 1"
