3610VL-04W-B50-E00

Obsolete

NMB TECHNOLOGIES

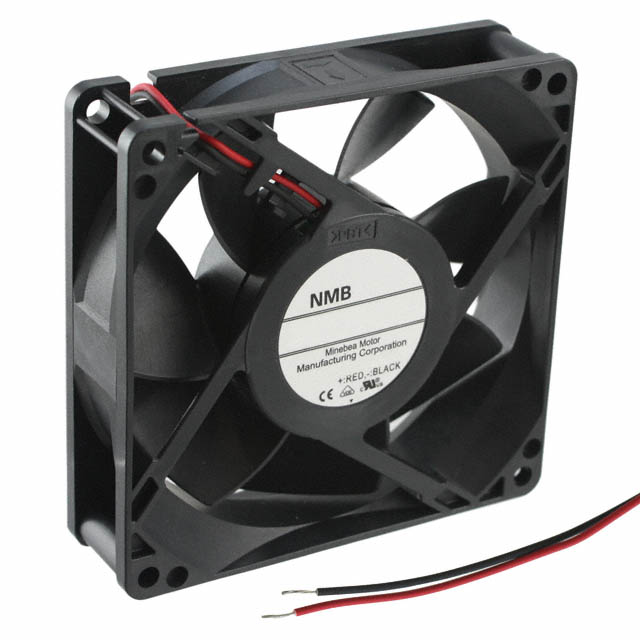

FAN AXIAL 92X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFan Agency Approvals Datasheet +1

3610VL-04W-B50-E00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 92X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsFan Agency Approvals Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3610VL-04W-B50-E00

Air Flow	77 CFM
Air Flow	2.16 m³/min
Approval Agency	UL, VDE, CE
Bearing Type	Ball
Current Rating (Amps)	400 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	100000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	45 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	4.8 W
RPM	4500 RPM
Static Pressure	98 Pa
Static Pressure	0.393 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	135.17 g
Weight	0.298 lb
Width [y]	25 mm

3610VL Series

Part	Approval Agency	Noise	Termination	Material - Blade	Current Rating (Amps)	Air Flow	Air Flow	RPM	Voltage - Rated	Static Pressure	Static Pressure	Fan Type	Power (Watts)	Lifetime @ Temp.	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Features
NMB TECHNOLOGIES 3610VL-04W-B70-B00	CE UL VDE	51 dB(A)	2 Wire Leads	Plastic	0.72 A	2.7 m³/min	96.4 CFM	5600 RPM	12 VDC	149.9 Pa	0.602 in H2O	Tubeaxial	8.64 W	100000 Hrs	Plastic	70 °C	70 °C	-10 °C	-10 °C	135.17 g	0.298 lb	25 mm	7 V	13.8 VDC	Ball
NMB TECHNOLOGIES 3610VL-04W-B70-E00	CE UL VDE	51 dB(A)	2 Wire Leads	Plastic	0.72 A	2.7 m³/min	96.4 CFM	5600 RPM	12 VDC	149.9 Pa	0.602 in H2O	Tubeaxial	8.64 W	100000 Hrs	Plastic	70 °C	70 °C	-10 °C	-10 °C	135.17 g	0.298 lb	25 mm	7 V	13.8 VDC	Ball
NMB TECHNOLOGIES 3610VL-04W-B50-E00	CE UL VDE	45 dB(A)	2 Wire Leads	Plastic	400 mA	2.16 m³/min	77 CFM	4500 RPM	12 VDC	98 Pa	0.393 in H2O	Tubeaxial	4.8 W	100000 Hrs	Plastic	70 °C	70 °C	-10 °C	-10 °C	135.17 g	0.298 lb	25 mm	7 V	13.8 VDC	Ball
NMB TECHNOLOGIES 3610VL-05W-B70-E00	CE UL VDE	51 dB(A)	2 Wire Leads	Plastic	0.38 A	2.7 m³/min	96.4 CFM	5600 RPM	24 VDC	149.9 Pa	0.602 in H2O	Tubeaxial	9.12 W	100000 Hrs	Plastic	70 °C	70 °C	-10 °C	-10 °C	135.17 g	0.298 lb	25 mm	14 VDC	27.6 VDC	Ball
NMB TECHNOLOGIES 3610VL-05W-B30-E00	CE UL VDE	38.5 dB	2 Wire Leads	Plastic	140 mA	1.71 m³/min	61.1 CFM	3600 RPM	24 VDC	65 Pa	0.261 in H2O	Tubeaxial	3.36 W	100000 Hrs	Plastic	70 °C	70 °C	-10 °C	-10 °C	135.17 g	0.298 lb	25 mm	14 VDC	27.6 VDC	Ball
NMB TECHNOLOGIES 3610VL-05W-B59-E00	CE UL VDE	45 dB(A)	3 Wire Leads	Plastic	0.22 A	2.16 m³/min	77 CFM	4500 RPM	24 VDC	98 Pa	0.393 in H2O	Tubeaxial	5.28 W	100000 Hrs	Plastic	70 °C	70 °C	-10 °C	-10 °C	135.17 g	0.298 lb	25 mm	14 VDC	27.6 VDC	Ball	Locked Rotor Sensor
NMB TECHNOLOGIES 3610VL-05W-B29-E00	CE UL VDE	35.5 dB	3 Wire Leads	Plastic	110 mA	1.51 m³/min	54 CFM	3200 RPM	24 VDC	49.8 Pa	0.2 in H2O	Tubeaxial	2.64 W	100000 Hrs	Plastic	70 °C	70 °C	-10 °C	-10 °C	135.17 g	0.298 lb	25 mm	14 VDC	27.6 VDC	Ball	Locked Rotor Sensor
NMB TECHNOLOGIES 3610VL-04W-B30-B00	CE UL VDE	38.5 dB	2 Wire Leads	Plastic	0.24 A	1.71 m³/min	61.1 CFM	3600 RPM	12 VDC	65 Pa	0.261 in H2O	Tubeaxial	2.88 W	100000 Hrs	Plastic	70 °C	70 °C	-10 °C	-10 °C	135.17 g	0.298 lb	25 mm	7 V	13.8 VDC	Ball
NMB TECHNOLOGIES 3610VL-04W-B50-B00	CE UL VDE	45 dB(A)	2 Wire Leads	Plastic	400 mA	2.16 m³/min	77 CFM	4500 RPM	12 VDC	98 Pa	0.393 in H2O	Tubeaxial	4.8 W	100000 Hrs	Plastic	70 °C	70 °C	-10 °C	-10 °C	135.17 g	0.298 lb	25 mm	7 V	13.8 VDC	Ball
NMB TECHNOLOGIES 3610VL-04W-B30-E00	CE UL VDE	38.5 dB	2 Wire Leads	Plastic	0.24 A	1.71 m³/min	61.1 CFM	3600 RPM	12 VDC	65 Pa	0.261 in H2O	Tubeaxial	2.88 W	100000 Hrs	Plastic	70 °C	70 °C	-10 °C	-10 °C	135.17 g	0.298 lb	25 mm	7 V	13.8 VDC	Ball

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.51
		10	$ 15.76
		25	$ 14.82

Description

General part information

3610VL Series

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 77.0 CFM (2.16m³/min) 2 Wire Leads
