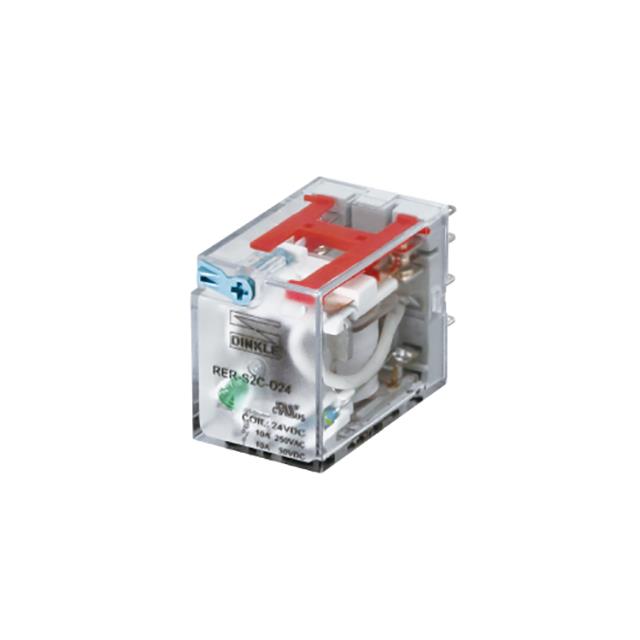

RER-S2C-A230
ActiveDinkle Corporation, USA
RELAY GEN PURPOSE SPDT 10A 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RER-S2C-A230
ActiveDinkle Corporation, USA
RELAY GEN PURPOSE SPDT 10A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RER-S2C-A230 |
|---|---|
| Coil Current | 5.5 mA |
| Coil Resistance | 4.43 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Features | Lighted Indicator |
| Mounting Type | Socketable |
| Must Operate Voltage | 184 VAC |
| Must Release Voltage | 69 VAC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.32 | |
| 10 | $ 16.74 | |||
| 50 | $ 14.51 | |||
| 100 | $ 13.39 | |||
| 200 | $ 12.27 | |||
| 500 | $ 11.16 | |||
| 1000 | $ 10.04 | |||
Description
General part information
RER-S2 Series
General Purpose Relay DPDT (2 Form C) 230VAC Coil Socketable
