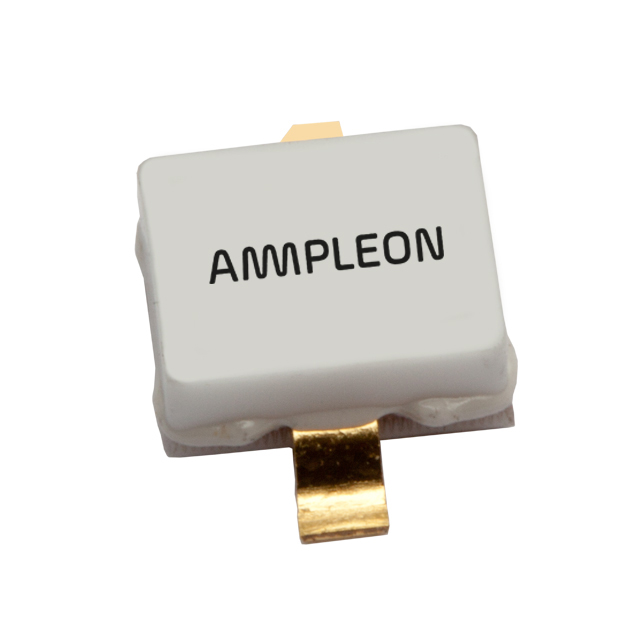

BLA1011-2,112

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 36V 2CSMD

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 36V 2CSMD

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Current - Test	Frequency [Min]	Frequency [Max]	Voltage - Test	Voltage - Rated	Mounting Type	Gain	Package / Case	Power - Output	Current Rating (Amps)
Ampleon USA Inc. BLA1011-200,112	SOT502A	150 mA	1.03 GHz	1.09 GHz	36 V	75 V	Chassis Mount	13 dBi	SOT-502A	200 W
Ampleon USA Inc. BLA1011-2,112	2-CSMD	50 mA	1.03 GHz	1.09 GHz	36 V	75 V	Surface Mount	16 dB	SOT-538A	2 W	2.2 A
Ampleon USA Inc. BLA1011-300,112	LDMOST	150 mA	1.03 GHz	1.09 GHz	32 V	65 V	Chassis Mount	16.5 dBi	SOT-957A	300 W	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	4	$ 86.67

General part information

RF Mosfet 36 V 50 mA 1.03GHz ~ 1.09GHz 16dB 2W 2-CSMD
