845-022-523-404
ActiveEDAC Inc.

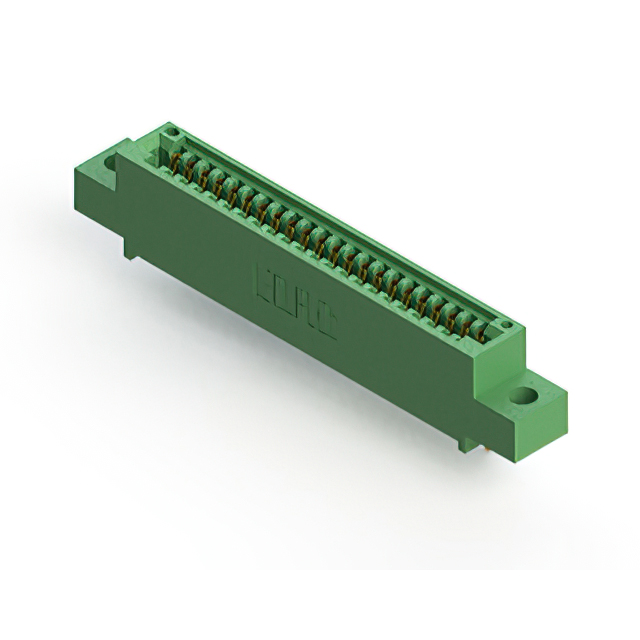

CONN EDGE SINGLE FML 22POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-022-523-404
ActiveEDAC Inc.
CONN EDGE SINGLE FML 22POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-022-523-404 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-022 Series
...
| Part | Number of Positions | Material - Insulation | Number of Positions/Bay/Row [custom] | Color | Pitch [x] | Pitch [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Finish | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Flange Feature | Flange Feature | Number of Rows | Contact Type | Read Out | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 22 positions | Diallyl Phthalate (DAP) | 22 | Green | 2.54 mm | 0.1 in | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 125 °C | -40 °C | 1 | 3.25 mm | 0.128 in | 1 | Cantilever | Single | Through Hole | |||
EDAC Inc. | 22 positions | Diallyl Phthalate (DAP) | 22 | Green | 2.54 mm | 0.1 in | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Gold | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 125 °C | -40 °C | 1 | 1 | Cantilever | Single | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | 22 positions | Diallyl Phthalate (DAP) | 22 | Green | 2.54 mm | 0.1 in | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 125 °C | -40 °C | 1 | 1 | Cantilever | Single | Through Hole | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 22 positions | Diallyl Phthalate (DAP) | 11 | Green | 2.54 mm | 0.1 in | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 125 °C | -40 °C | 2 | 2 | Cantilever | Dual | Through Hole Right Angle | |||||
EDAC Inc. | 22 positions | Diallyl Phthalate (DAP) | 22 | Green | 2.54 mm | 0.1 in | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 125 °C | -40 °C | 1 | 1 | Cantilever | Single | Through Hole Right Angle | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | ||
EDAC Inc. | 22 positions | Diallyl Phthalate (DAP) | 22 | Green | 2.54 mm | 0.1 in | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 125 °C | -40 °C | 1 | 1 | Cantilever | Single | Through Hole Right Angle | |||||
EDAC Inc. | 22 positions | Diallyl Phthalate (DAP) | 22 | Green | 2.54 mm | 0.1 in | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 125 °C | -40 °C | 1 | 1 | Cantilever | Single | Through Hole | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in | ||
EDAC Inc. | 22 positions | Diallyl Phthalate (DAP) | 22 | Green | 2.54 mm | 0.1 in | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 125 °C | -40 °C | 1 | 1 | Cantilever | Single | Through Hole | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 22 positions | Diallyl Phthalate (DAP) | 11 | Green | 2.54 mm | 0.1 in | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 125 °C | -40 °C | 2 | 3.25 mm | 0.128 in | 2 | Cantilever | Dual | Through Hole Right Angle | Side Mount Opening Unthreaded | ||
EDAC Inc. | 22 positions | Diallyl Phthalate (DAP) | 11 | Green | 2.54 mm | 0.1 in | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 125 °C | -40 °C | 2 | 2 | Cantilever | Dual | Through Hole | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 47.97 | |
Description
General part information
845-022 Series
22 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
