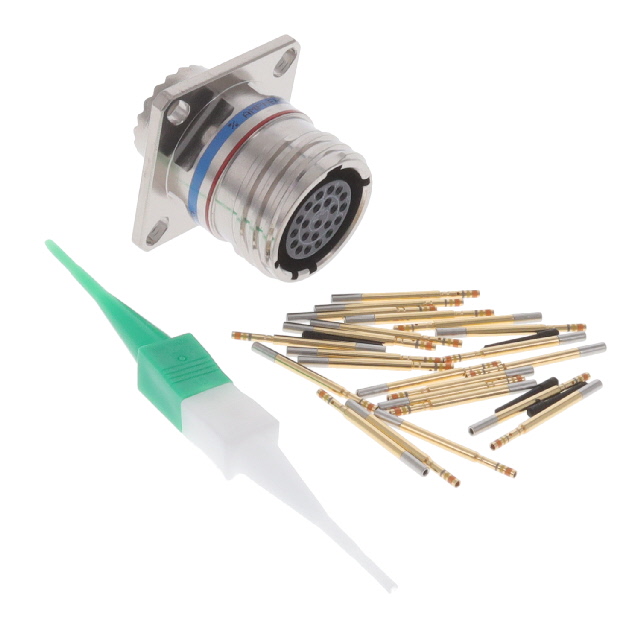

D38999/20FC35SA

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 22POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20FC35SA

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 22POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20FC35SA

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	22 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	13
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

D38999/20FC Series

Part	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Mounting Feature	Shell Material	Connector Type	Contact Material	Qualification	Color	Primary Material	Current Rating (Amps)	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Number of Positions	Shell Size, MIL	Contact Finish - Mating	Ingress Protection	Applications	Termination	Type	Note	Housing Color	Contact Size	Contact Shape	Contact Type	Shell Size - Insert	Insert Material	Contact Size
Amphenol Aerospace Operations D38999/20FC35SA	35	13	Military	-65 ░C	200 °C	Shielded	Flange	Aluminum	Receptacle Female Sockets	Copper Alloy	MIL-DTL-38999 Series III	Silver	Metal	5 A	A	1.27 µm	50 µin	Electroless Nickel	22 positions	C	Gold	Environment Resistant	Aerospace Aviation Marine Military	Crimp
Amphenol Aerospace Operations D38999/20FC4PA-LC			Military	-65 ░C	200 °C	Shielded	Flange	Aluminum	Receptacle Housing		MIL-DTL-38999 Series III				A			Electroless Nickel	4	C		Environment Resistant			For Male Pins	Contacts Not Included	Silver	16	Circular	Crimp	13-4
Amphenol Aerospace Operations D38999/20FC8HN			Military	-65 ░C	200 °C	Shielded	Flange	Aluminum	Male Pins Receptacle	Copper Alloy	MIL-DTL-38999 Series III	Silver	Metal		N	2.54 çm	100 çin	Electroless Nickel	8	C	Gold	Environment Resistant	Aviation Marine Military	Crimp							13-8
Amphenol Aerospace Operations D38999/20FC35SNLC	35	13	Military	-65 ░C	200 °C	Shielded	Flange	Aluminum	Receptacle Housing		MIL-DTL-38999 Series III		Metal		N			Electroless Nickel	22 positions	C		Environment Resistant			For Female Sockets	Contacts Not Included	Silver		Circular	Crimp		Thermoplastic	22D
Amphenol Aerospace Operations D38999/20FC8JA			Military	-65 ░C	200 °C	Shielded	Flange	Aluminum	Receptacle Female Sockets	Copper Alloy	MIL-DTL-38999 Series III	Silver	Metal		A	2.54 çm	100 çin	Electroless Nickel	8	C	Gold	Environment Resistant	Aviation Marine Military	Crimp							13-8
Amphenol Aerospace Operations D38999/20FC98PA-LC			Military	-65 ░C	200 °C	Shielded	Flange	Aluminum	Receptacle Housing		MIL-DTL-38999 Series III				A			Electroless Nickel	10	C		Environment Resistant			For Male Pins	Contacts Not Included	Silver	20	Circular	Crimp
Amphenol Aerospace Operations D38999/20FC4SN			Military	-65 ░C	200 °C	Shielded	Flange	Aluminum	Receptacle Female Sockets	Copper Alloy	MIL-DTL-38999 Series III	Silver	Metal	13 A	N	1.27 µm	50 µin	Electroless Nickel	4	C	Gold	Environment Resistant	Aerospace Aviation Marine Military	Crimp							13-4
Amphenol Aerospace Operations D38999/20FC98PN			Military	-65 ░C	200 °C	Shielded	Flange	Aluminum	Male Pins Receptacle	Copper Alloy	MIL-DTL-38999 Series III	Silver	Metal	7.5 A	N	1.27 µm	50 µin	Electroless Nickel	10	C	Gold	Environment Resistant	Aerospace Aviation Marine Military	Crimp
Amphenol Aerospace Operations D38999/20FC98HN			Military	-65 ░C	200 °C	Shielded	Flange	Aluminum	Male Pins Receptacle	Copper Alloy	MIL-DTL-38999 Series III	Silver	Metal		N	2.54 çm	100 çin	Electroless Nickel	10	C	Gold	Environment Resistant	Aviation Marine Military	Crimp
Amphenol Aerospace Operations D38999/20FC35PN	35	13	Military	-65 ░C	200 °C	Shielded	Flange	Aluminum	Male Pins Receptacle	Copper Alloy	MIL-DTL-38999 Series III	Silver	Metal	5 A	N	1.27 µm	50 µin	Electroless Nickel	22 positions	C	Gold	Environment Resistant	Aerospace Aviation Marine Military	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 315.98
		10	$ 248.18
		25	$ 226.81

Description

General part information

D38999/20FC Series

22 Position Circular Connector Receptacle, Female Sockets Crimp
