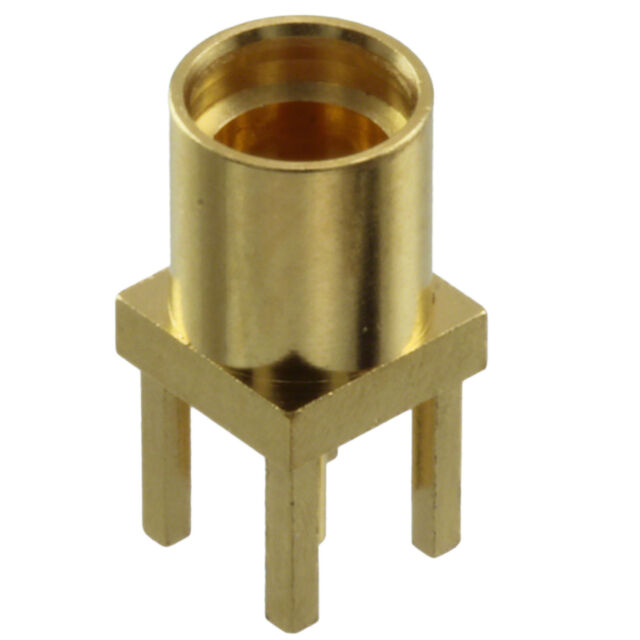

MMCX-R-PC(40) - MMCX-R-PC(40)

MMCX-R-PC(40)

Active
Hirose Electric USA, Inc.

RF MMCX CONNECTOR, 1 CONTACT(S), FEMALE, BOARD MOUNT, SOLDER TERMINAL, LOCKING, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MMCX-R-PC(40) - MMCX-R-PC(40)

MMCX-R-PC(40)

Active
Hirose Electric USA, Inc.

RF MMCX CONNECTOR, 1 CONTACT(S), FEMALE, BOARD MOUNT, SOLDER TERMINAL, LOCKING, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMMCX-R-PC(40)
Body FinishGold
Body MaterialBrass
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleMMCX
Connector TypeReceptacle, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Frequency - Max [Max]6000 MHz
Housing ColorGold
Impedance50 Ohms
Mating Cycles500
Mounting TypeThrough Hole
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-55 °C
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.10
10$ 3.13
25$ 2.82
50$ 2.61
100$ 2.42
250$ 2.20
500$ 2.04
1000$ 1.91
2500$ 1.74

Description

General part information

MMCX-R Series

MMCX Connector Receptacle, Female Socket 50 Ohms Through Hole Solder
