NC1M120C75RRNG
ActiveNovuSem
SIC MOSFET N 1200V 75MOHM 46A 7
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NC1M120C75RRNG
ActiveNovuSem
SIC MOSFET N 1200V 75MOHM 46A 7
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NC1M120C75RRNG |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 46 A |
| Drain to Source Voltage (Vdss) | 1200 V |
| Drive Voltage (Max Rds On, Min Rds On) | 18 V |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 1402 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Power Dissipation (Max) | 240 W |
| Rds On (Max) @ Id, Vgs | 75 mOhm |
| Supplier Device Package | TO-263-7L |
| Vgs (Max) [Max] | 18 V |
| Vgs (Max) [Min] | -5 V |
| Vgs(th) (Max) @ Id | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 50 | $ 13.85 | |
Description
General part information
NC1M120C75RRNG

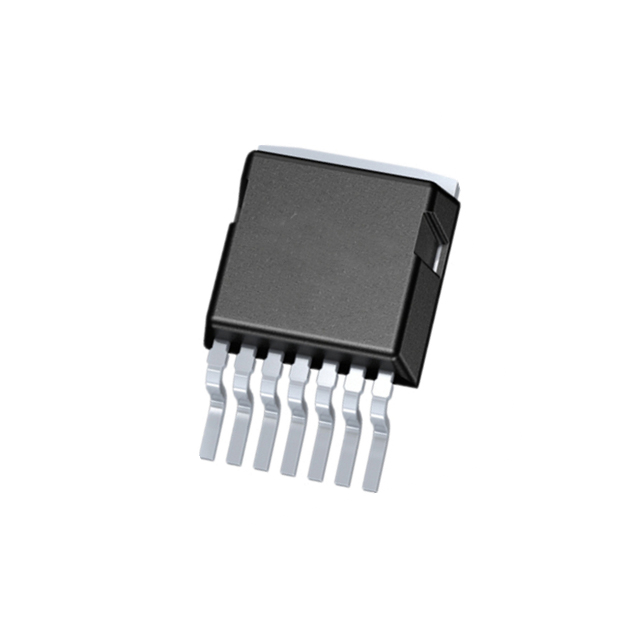

N-Channel 1200 V 46A (Tc) 240W (Ta) Surface Mount TO-263-7L
