TG-A4500F-320-320-0.5

Obsolete

t-Global Technology

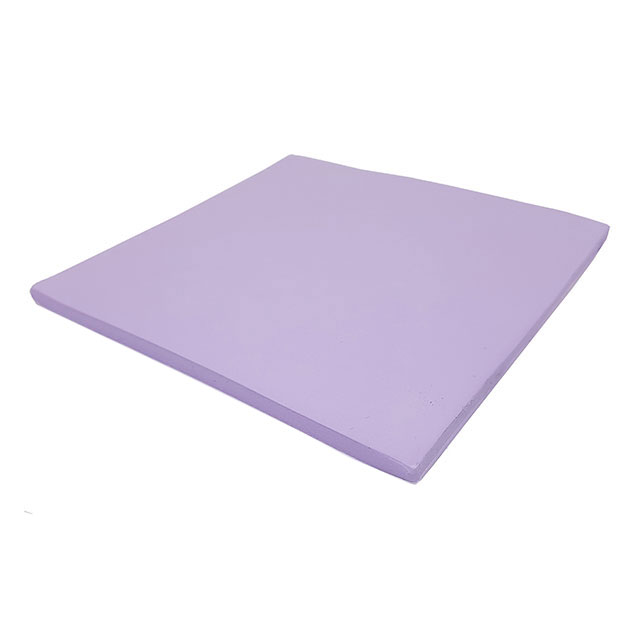

THERM PAD 320X320MM PURP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThermal Pad Tolerance Datasheet

TG-A4500F-320-320-0.5

Obsolete

t-Global Technology

THERM PAD 320X320MM PURP

Deep-Dive with AI

DocumentsThermal Pad Tolerance Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TG-A4500F-320-320-0.5

Adhesive	Tacky - One Side
Backing, Carrier	Fiberglass
Color	Purple
Material	Silicone
Outline [x]	320 mm
Outline [y]	320 mm
Shape	Square
Shelf Life	24 Months
Thermal Conductivity	4 W/m-K
Thickness	0.0197 in
Thickness	0.5 mm
Type	Gap Filler Pad, Sheet
Usage	Multi

TG-A4500 Series

...

Part	Backing, Carrier	Adhesive	Shape	Type	Outline [x]	Outline [y]	Thermal Conductivity	Shelf Life	Thickness	Thickness	Color	Usage	Material
t-Global Technology TG-A4500F-320-320-1.0	Fiberglass	Tacky - One Side	Square	Gap Filler Pad Sheet	320 mm	320 mm	4 W/m-K	24 Months	0.0394 in	1 mm	Purple	Multi	Silicone
t-Global Technology TG-A4500-10-10-2.0		Tacky - Both Sides	Square	Gap Filler Pad Sheet	10 mm	10 mm	4.5 W/m-K	24 Months	0.079 in	2 mm	Purple	Multi	Silicone
t-Global Technology TG-A4500F-320-320-0.5	Fiberglass	Tacky - One Side	Square	Gap Filler Pad Sheet	320 mm	320 mm	4 W/m-K	24 Months	0.0197 in	0.5 mm	Purple	Multi	Silicone
t-Global Technology TG-A4500-40-40-4.0		Tacky - Both Sides	Square	Gap Filler Pad Sheet	40 mm	40 mm	4.5 W/m-K	24 Months	0.157 in	4 mm	Purple	Multi	Silicone
t-Global Technology TG-A4500-30-30-3.0		Tacky - Both Sides	Square	Gap Filler Pad Sheet	30 mm	30 mm	4.5 W/m-K	24 Months	0.118 in	3 mm	Purple	Multi	Silicone
t-Global Technology TG-A4500-25-25-5.0		Tacky - Both Sides	Square	Gap Filler Pad Sheet	25 mm	25 mm	4.5 W/m-K	24 Months	0.197 "	5 mm	Purple	Multi	Silicone
t-Global Technology TG-A4500-25-25-3.0		Tacky - Both Sides	Square	Gap Filler Pad Sheet	25 mm	25 mm	4.5 W/m-K	24 Months	0.118 in	3 mm	Purple	Multi	Silicone
t-Global Technology TG-A4500-5-5-0.5		Tacky - Both Sides	Square	Gap Filler Pad Sheet	5 mm	5 mm	4.5 W/m-K	24 Months	0.0197 in	0.5 mm	Purple	Multi	Silicone
t-Global Technology TG-A4500-5-5-1.5		Tacky - Both Sides	Square	Gap Filler Pad Sheet	5 mm	5 mm	4.5 W/m-K	24 Months	0.0591 "	1.5 mm	Purple	Multi	Silicone
t-Global Technology TG-A4500F-160-160-0.5	Fiberglass	Tacky - One Side	Square	Gap Filler Pad Sheet	160 mm	160 mm	4 W/m-K	24 Months	0.0197 in	0.5 mm	Purple	Multi	Silicone

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$
