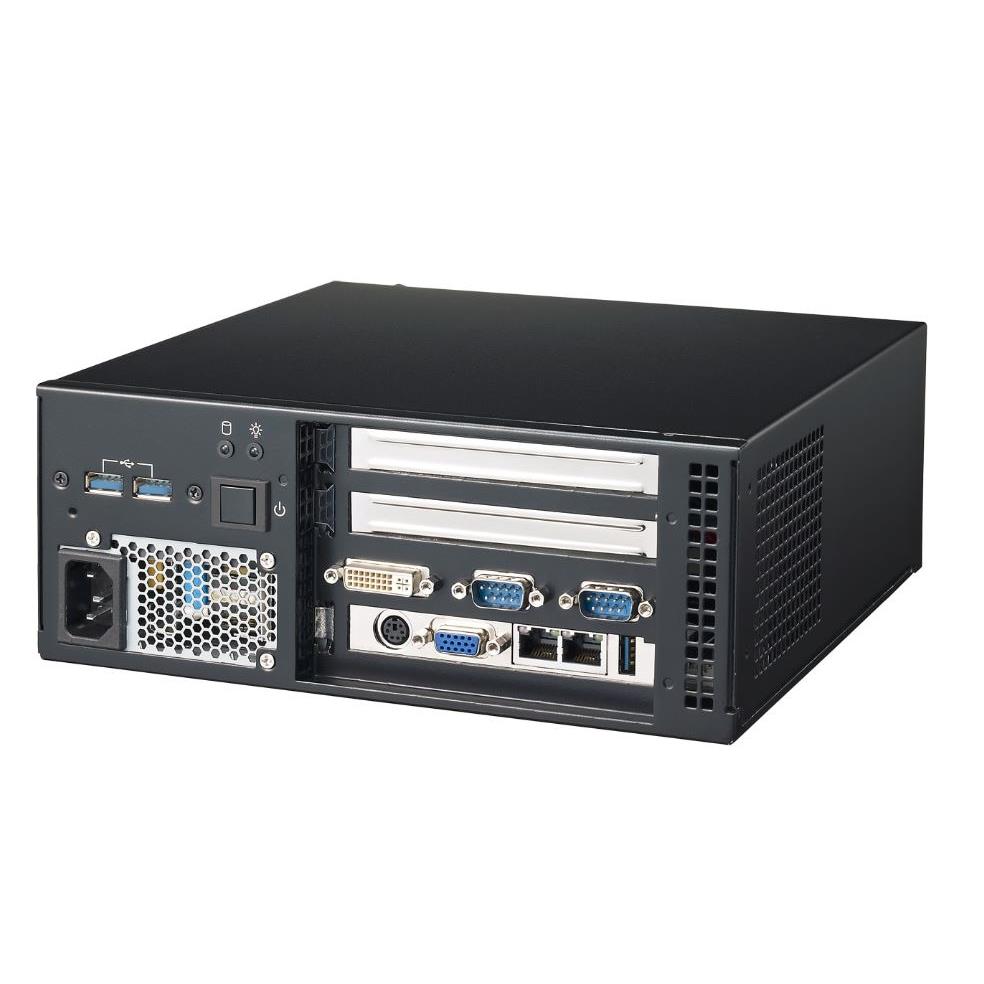

AIMC-3202-00A1E
ActiveAdvantech Corp
SBC 3.9GHZ 44 CORE 32GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
AIMC-3202-00A1E
ActiveAdvantech Corp
SBC 3.9GHZ 44 CORE 32GB/0GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMC-3202-00A1E |
|---|---|
| Cooling Type | Fan |
| Core Processor | Intel 6th/7th GenCore i7/i5/i3/Celeron |
| Ethernet | 2, 100 Mbps, 10 Mbps, 1000 Mbps |
| Ethernet | RJ45 |
| Expansion Site/Bus | PCIe, PCI |
| Form Factor | ATX |
| Number of Cores | 44 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 32 GB, 0 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 9.134 " |
| Size / Dimension [x] | 232 mm |
| Size / Dimension [y] | 9.134 " |
| Size / Dimension [y] | 232 mm |
| Speed | 2.4 GHz, 2.7 GHz, 2.6 GHz, 3.4 GHz, 3.7 GHz, 2.3 GHz, 3.2 GHz, 2.9 GHz, 3.9 GHz, 3.6 GHz |
| Storage Interface | SATA 3.0 |
| USB | USB 3.0 (3), USB 2.0 (1) |
| Video Outputs | DVI, VGA |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 773.00 | |
Description
General part information
AIMC-3202 Series
Single Board Computer 2.3GHz, 2.4GHz, 2.6GHz, 2.7GHz, 2.9GHz, 3.2GHz, 3.4GHz, 3.6GHz, 3.7GHz, 3.9GHz 44 Core 32GB/0GB RAM Intel 6th/7th GenCore i7/i5/i3/Celeron
Documents
Technical documentation and resources
No documents available
