C0681A.41.10

Active

Prysmian Group

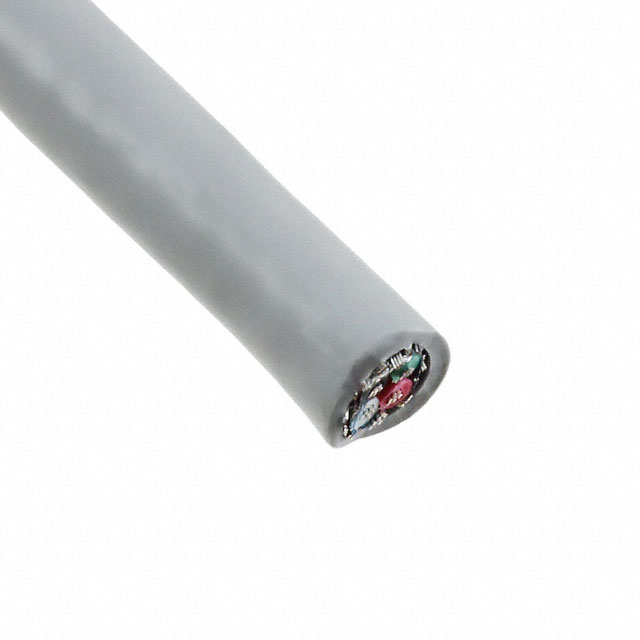

CABLE 4COND 24AWG GRAY SHLD 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 24AWG GRAY SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C0681A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.227 in
Jacket (Insulation) Diameter [diameter]	5.77 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m, 304.8 m
Length	1000 ft
Length [x]	30.5 m
Length [x]	100 ft, 50 ft
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	70 %, 100 %
Shield Material	Tinned, Flexfoil®, Copper
Shield Type	Foil, Braid
Usage	Computer
Voltage	30 V
Wire Gauge	24 AWG

Part	Jacket Color	Jacket (Insulation) Material	Usage	Features	Shield Type	Shield Coverage	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Length	Shield Material	Cable Type	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Wire Gauge
Prysmian Group C0681A.41.10	Gray	Poly-Vinyl Chloride (PVC)	Computer	Drain Wire	Braid Foil	70 % 100 %	Polypropylene (PP)	30.5 m	50 ft 100 ft	0.227 in	5.77 mm	30 V	15.24 m 304.8 m	4	7	30 AWG	1000 ft	Copper Flexfoil® Tinned	Multi-Conductor	Copper Annealed Tinned	-20 C	80 C	UL Style 2919	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 24 AWG Foil, Braid 1000.0' (304.8m)
