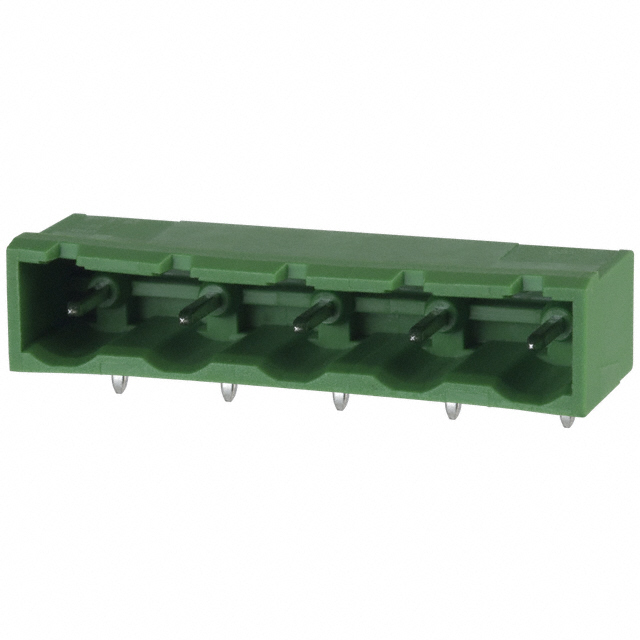

EDSTLZ960/5

Active

On Shore Technology Inc.

TERM BLOCK HDR 5POS 90DEG 7.62MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsED Part Number Breakdown Datasheet

EDSTLZ960/5

Active

On Shore Technology Inc.

TERM BLOCK HDR 5POS 90DEG 7.62MM

Deep-Dive with AI

DocumentsED Part Number Breakdown Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDSTLZ960/5

Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA), Nylon
Insulation Height	3.5 mm
Insulation Height	0.138 in
Mounting Type	Solder
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	5
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

EDSTL Series

...

Part	Housing Material	Insulation Height	Insulation Height	Header Orientation	Mounting Type	Number of Levels	Pitch [x]	Pitch [x]	Contact Tail Length	Contact Tail Length	Type	Number of Positions	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Material Flammability Rating	Plug Wire Entry	Header Orientation	Termination Style
On Shore Technology Inc. EDSTL971/12	Polyamide (PA) Nylon	3.5 mm	0.138 in	90° Right Angle	Solder	2	5 mm	0.197 in	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)	24	300 V	-30 ░C	105 ░C
On Shore Technology Inc. EDSTL951/3	Polyamide (PA) Nylon	3.5 mm	0.138 in	90° Right Angle	Solder	1	5 mm	0.197 in	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)		300 V	-30 ░C	105 ░C	3	UL94 V-0
On Shore Technology Inc. EDSTLZ1590/12	Polybutylene Terephthalate (PBTP)	3.4 mm	0.134 in		Solder	1	3.81 mm	0.15 in	3.4 mm	0.134 in	Header Male Pins Shrouded (4 Side)	12	300 V	-30 ░C	105 ░C	12		45 °	45 °
On Shore Technology Inc. EDSTLZ1590/18	Polybutylene Terephthalate (PBTP)	3.4 mm	0.134 in		Solder	1	3.81 mm	0.15 in	3.4 mm	0.134 in	Header Male Pins Shrouded (4 Side)	18	300 V	-30 ░C	105 ░C	18		45 °	45 °
On Shore Technology Inc. EDSTL976/12	Polyamide (PA) Nylon	3.9 mm	0.154 in	Vertical	Solder	2	5 mm	0.197 in	3.9 mm	0.154 "	Header Male Pins Shrouded (4 Side)	24	300 V	-30 ░C	105 ░C
On Shore Technology Inc. EDSTLZ965/12	Polyamide (PA) Nylon	3.9 mm	0.154 in	Vertical	Through Hole	1	7.62 mm	0.3 in	3.9 mm	0.154 "	Header Male Pins Shrouded (4 Side)	12	300 V	-30 ░C	105 ░C	12				Solder
On Shore Technology Inc. EDSTL950/24	Polyamide (PA) Nylon	3.5 mm	0.138 in	90° Right Angle	Solder	1	5 mm	0.197 in	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)	24	300 V	-30 ░C	105 ░C
On Shore Technology Inc. EDSTLZ960/5	Polyamide (PA) Nylon	3.5 mm	0.138 in	90° Right Angle	Solder	1	7.62 mm	0.3 in	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)		300 V	-30 ░C	105 ░C	5
On Shore Technology Inc. EDSTL971/5	Polyamide (PA) Nylon	3.5 mm	0.138 in	90° Right Angle	Solder	2	5 mm	0.197 in	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)	10	300 V	-30 ░C	105 ░C	10
On Shore Technology Inc. EDSTL955/6	Polyamide (PA) Nylon	3.9 mm	0.154 in	Vertical	Solder	1	5 mm	0.197 in	3.9 mm	0.154 "	Header Male Pins Shrouded (4 Side)	6	300 V	-30 ░C	105 ░C	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.16
		10	$ 1.64
		25	$ 1.52
		50	$ 1.36
		100	$ 1.33
		300	$ 1.16
		500	$ 1.06
		1000	$ 0.97
		5000	$ 0.85

Description

General part information

EDSTL Series

5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Solder
