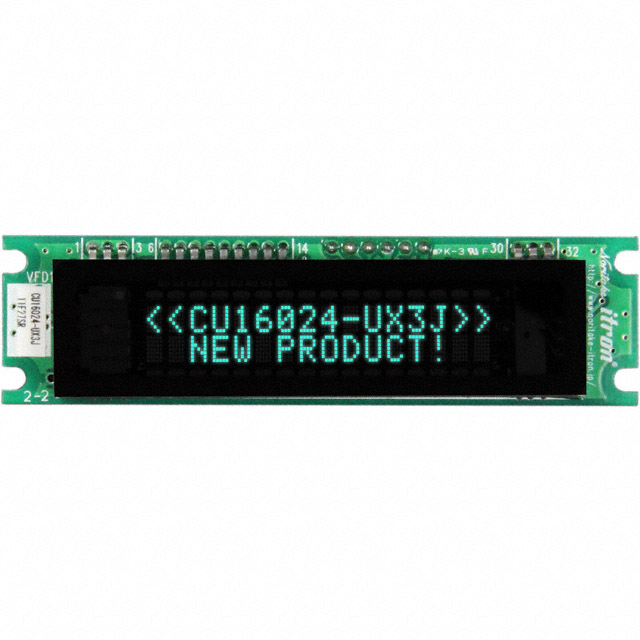

CU16024-UX3J
ActiveNoritake U.S.A., Inc.
VFD CHARACTER 16X2 3.57MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CU16024-UX3J
ActiveNoritake U.S.A., Inc.
VFD CHARACTER 16X2 3.57MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CU16024-UX3J |
|---|---|
| Character Size [y] | 2.07 mm |
| Character Size [z] | 3.57 mm |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Interface | Serial |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 86.6 mm |
| Outline L x W x H [y] | 23 mm |
| Outline L x W x H [z] | 8.55 mm |
| Viewing Area [x] | 46.54 mm |
| Viewing Area [y] | 7.65 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 24 | $ 80.69 | |
Description
General part information
CU16024 Series
Vacuum Fluorescent Display (VFD) 16 x 2 Character 5V Serial 86.60mm x 23.00mm x 8.55mm
Documents
Technical documentation and resources
