ZR40402F41TA

Obsolete

Diodes Inc

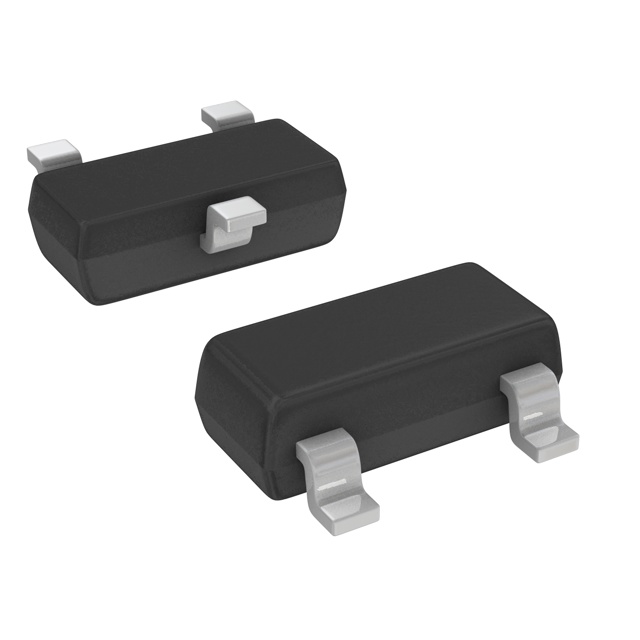

IC VREF SHUNT 4.096V SOT23

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC VREF SHUNT 4.096V SOT23

Technical Specifications

Parameters and characteristics for this part

Specification	ZR40402F41TA

Reference Type	Shunt

Part	Reference Type	Noise - 10Hz to 10kHz	Package / Case	Output Type	Tolerance	Mounting Type	Current - Output	Temperature Coefficient	Current - Cathode [custom]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)
Diodes Inc ZR40402F41TA	Shunt
Diodes Inc ZR40402R50STOB	Shunt	105 µVrms	E-Line-3	1.81 mOhm	2 %	Through Hole	15 mA	100 ppm/°C	60 µA	E-Line (TO-92 compatible)	85 °C	-40 °C	5 V
Diodes Inc ZR40402R50	Shunt	105 µVrms	TO-226-3 TO-92-3	1.81 mOhm	2 %	Through Hole	15 mA	100 ppm/°C	60 µA	TO-92	85 °C	-40 °C	5 V
Diodes Inc ZR40402R41STOB	Shunt	90 µVrms	E-Line-3	1.81 mOhm	2 %	Through Hole	15 mA	100 ppm/°C	60 µA	E-Line (TO-92 compatible)	85 °C	-40 °C	4.096 V
Diodes Inc ZR40402R25	Shunt	45 µVrms	TO-226-3 TO-92-3	1.81 mOhm	2 %	Through Hole	15 mA	100 ppm/°C	60 µA	TO-92	85 °C	-40 °C	2.5 V
Diodes Inc ZR40402R41	Shunt	90 µVrms	TO-226-3 TO-92-3	1.81 mOhm	2 %	Through Hole	15 mA	100 ppm/°C	60 µA	TO-92	85 °C	-40 °C	4.096 V
Diodes Inc ZR40402R41STOA	Shunt	90 µVrms	E-Line-3	1.81 mOhm	2 %	Through Hole	15 mA	100 ppm/°C	60 µA	E-Line (TO-92 compatible)	85 °C	-40 °C	4.096 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Shunt Voltage Reference IC V

Technical documentation and resources

No documents available
