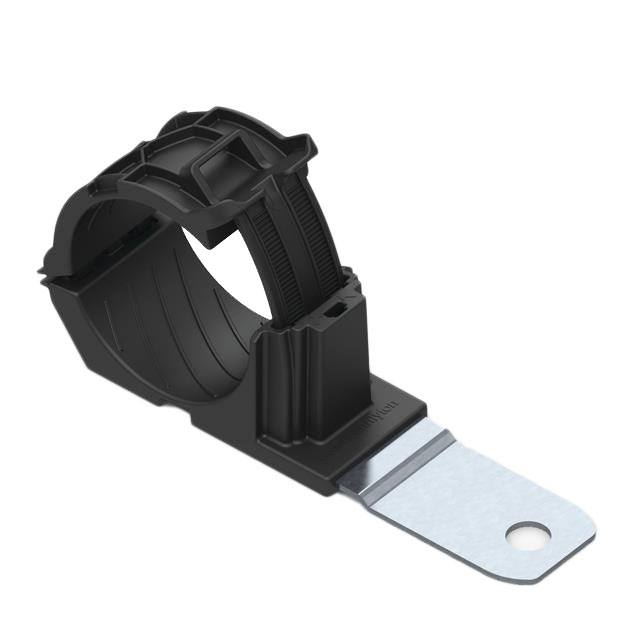

151-02014

Active

HELLERMANNTYTON

CBL CLAMP P-TYPE BLACK FASTENER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

151-02014

Active

HELLERMANNTYTON

CBL CLAMP P-TYPE BLACK FASTENER

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	151-02014

Bundle Center to Mounting Center [custom]	91.95 mm
Bundle Center to Mounting Center [custom]	3.62 in
Color	Black
Features	UV Resistant, Heat Stabilized, Impact Resistant
Length	5.413 "
Length	137.5 mm
Material	Polyamide (PA66), Steel, Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Fastener
Opening Size [Max] [custom]	51 mm
Opening Size [Max] [custom]	2.008 in
Opening Size [Min] [custom]	36 mm
Opening Size [Min] [custom]	1.417 in
Panel Hole Size	0.405 in
Panel Hole Size	10.29 mm
Screw Size	M10
Type	Clamp, P-Type
Type Attributes	Ribbed, Ratchet
Type Attributes	180 °
Width [y]	1.374 in
Width [y]	34.9 mm

151-02 Series

Circuit Breakers DC1B0246201G1C

Part	Color	Mounting Type	For Use With/Related Products [Max]	For Use With/Related Products [Max]	Size / Dimension [x]	Size / Dimension [z]	Type	Material	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Height [z]	Height [z]	Material Flammability Rating	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Length	Length	Type Attributes	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Bundle Center to Mounting Center [custom]	Bundle Center to Mounting Center [custom]	Screw Size	Features	Type Attributes	Width [y]	Width [y]	Panel Hole Size	Panel Hole Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	For Use With/Related Products	For Use With/Related Products	Accessory Type	Size / Dimension [y]
HELLERMANNTYTON 151-02104	Black	Torque Mount	0.5 in	12.7 mm	3.43 in 87.1 mm	0.99 in 25.2 mm	Quad Opening	Nylon Impact Resistant Heat Stabilized UV Resistant
HELLERMANNTYTON 151-02552	Black	Fir Tree					C-Type Clip	Polyamide (PA66) Nylon 6/6	14 mm	0.394 in	0.551 in	10 mm	1.71 in	43.43 mm	UL94 HB	0.51 mm	0.27 "	0.02 "	6.86 mm	1.09 in	27.69 mm	Hinged Locking
HELLERMANNTYTON 151-02014	Black	Fastener					Clamp P-Type	Nylon 6/6 Polyamide (PA66) Steel							UL94 HB					5.413 "	137.5 mm	Ratchet Ribbed	51 mm	36 mm	2.008 in	1.417 in	91.95 mm	3.62 in	M10	Heat Stabilized Impact Resistant UV Resistant	180 °	1.374 in	34.9 mm	0.405 in	10.29 mm
HELLERMANNTYTON 151-02034	Black	Fastener					Clamp P-Type	Nylon 6/6 Polyamide (PA66) Steel							UL94 HB					3.492 in	88.7 mm	90° Ratchet Ribbed	51 mm	36 mm	2.008 in	1.417 in			M10	Heat Stabilized Impact Resistant UV Resistant		1.374 in	34.9 mm	0.405 in	10.29 mm	42.42 mm	1.67 in
HELLERMANNTYTON 151-02949	Blue	Cable Tie			27.9 mm		Single Opening	Polyamide (PA66) Nylon 6/6																														21.1 mm	0.8 "	0.83 "	20.3 mm	1.1 "	0.49 "	12.5 mm
HELLERMANNTYTON 151-02661																																													Clip
HELLERMANNTYTON 151-02567	Blue	Cable Tie	0.45 "	11.5 mm	25.9 mm	17.3 mm	Single Opening	Polyamide (PA66) Nylon 6/6																															0.68 in	0.71 in		1.02 in				18 mm
HELLERMANNTYTON 151-02039	Black	Fastener					Clamp P-Type	Nylon 6/6 Polyamide (PA66) Steel							UL94 HB					4.594 "	116.7 mm	90° Ratchet Ribbed	51 mm	36 mm	2.008 in	1.417 in			M12	Heat Stabilized Impact Resistant UV Resistant		1.374 in	34.9 mm	0.51 in	12.95 mm	42.42 mm	1.67 in
HELLERMANNTYTON 151-02094	Black	Torque Mount	0.5 in	12.7 mm	47 mm		Single Opening	Nylon Impact Resistant Heat Stabilized UV Resistant																														25.1 mm		0.99 in		1.85 in
HELLERMANNTYTON 151-02029	Black	Fastener					Clamp P-Type	Nylon 6/6 Polyamide (PA66) Steel							UL94 HB					5 in	127 mm	Ratchet Ribbed	51 mm	36 mm	2.008 in	1.417 in			M8	Heat Stabilized Impact Resistant UV Resistant	30 °	1.374 in	34.9 mm	0.327 in	8.31 mm	80.52 mm	3.17 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	140	$ 4.13
