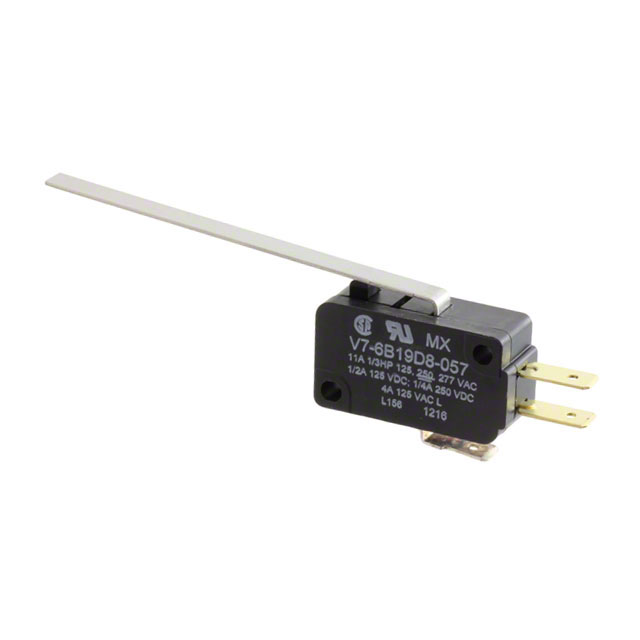

V7-6B19D8-057

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Release Force	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mounting Type	Mechanical Life	Voltage Rating - AC	Operating Force	Current Rating (Amps)	Switch Function	Termination Style	Voltage Rating - DC	Differential Travel	Differential Travel	Operating Position [custom]	Operating Position [custom]	Pretravel	Pretravel	Actuator Type	Electrical Life	Overtravel [x]	Overtravel [x]	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions V7-6B19D8-057	3 gf	0.146 "	3.7 mm	85 °C	-40 °C	SPDT	Chassis Mount	10000000 Cycles	125 V	55 gf	11 A 500 mA	On-Mom	Quick Connect - 0.187" (4.7mm)	125 VDC	2.54 mm	0.1 in	0.571 in	14.5 mm	0.3 in	7.6 mm	Lever Straight	100000 Cycles
Honeywell Sensing and Productivity Solutions V7-6C27D8-022				85 °C	-40 °C	SPST-NO	Chassis Mount	10000000 Cycles	125 V	120 gf	15 A 500 mA	Off-Mom	Quick Connect - 0.187" (4.7mm)	125 VDC							Lever Straight
Honeywell Sensing and Productivity Solutions V7-6C39D8-002
Honeywell Sensing and Productivity Solutions V7-6C17D8-439	24 gf			85 °C	-40 °C	SPDT	Chassis Mount	10000000 Cycles	125 V	146 gf	15 A 500 mA	On-Mom	Quick Connect - 0.187" (4.7mm)	125 VDC	1.1 mm	0.045 in			0.2 in	5.1 mm	Lever Straight	100000 Cycles	0.077 in	1.96 mm	15.3 mm	0.602 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
