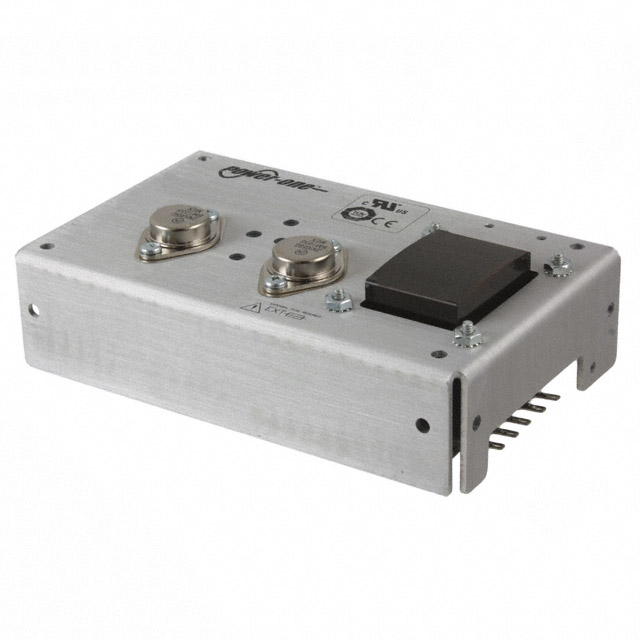

HAA512-AG

Active

EOS Power India Private Ltd

AC/DC CONVERTER 5V 12V 16W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 5V 12V 16W

Technical Specifications

Parameters and characteristics for this part

Specification	HAA512-AG

Applications	ITE (Commercial)
Current - Output 1	2 A
Current - Output 2	500 mA
Efficiency	45 %
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Power (Watts)	16 W
Size / Dimension [x]	165.1 mm
Size / Dimension [x]	6.5 in
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	53.3 mm
Size / Dimension [z]	2.1 "
Type	Linear
Voltage - Input	240 VAC, 120 VAC, 220 VAC, 230 VAC, 100 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V

Part	Voltage - Isolation	Number of Outputs	Power (Watts)	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output 2	Current - Output 1	Efficiency	Features	Voltage - Output 2	Applications	Mounting Type	Type	Voltage - Input
EOS Power India Private Ltd HAA512-AG	3000 V	2	16 W	5 V	53.3 mm	165.1 mm	4 "	2.1 "	101.6 mm	6.5 in	500 mA	2 A	45 %	Adjustable Output Remote Sense	12 V	ITE (Commercial)	Chassis Mount	Linear	100 VAC 120 VAC 220 VAC 230 VAC 240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 98.75

General part information

Linear AC DC Converters 2 Output 5V 12V 100, 120, 220, 230, 240 VAC Input

Technical documentation and resources

No documents available
