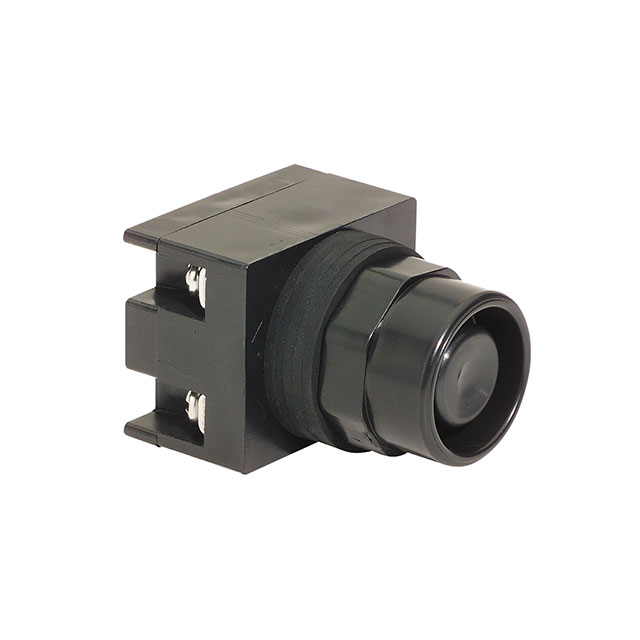

22PBNO-XFGN

Active

c3controls

22MM PB OPERATOR FLUSH GREEN

Search across all available documentation for this part.

Active

c3controls

22MM PB OPERATOR FLUSH GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	22PBNO-XFGN

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	10 A, 5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	25.5 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

Part	Ingress Protection	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Type	Mechanical Life	Current Rating (Amps)	Circuit	Color - Actuator/Cap	Voltage Rating - AC	Switch Function	Type	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Mounting Type
c3controls 22PBNO-XFGN	IP65 - Dust Tight Water Resistant	Screw Terminal	25.5 mm	Button Flush Round	5000000 Cycles	5 A 10 A	SPST-NO	Green	72 V	Off-Mom	Standard	No Marking	-40 °C	55 °C	28 V	Panel Mount Rear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.67

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
