C-BR20-AK511
ActiveCnC Tech, LLC

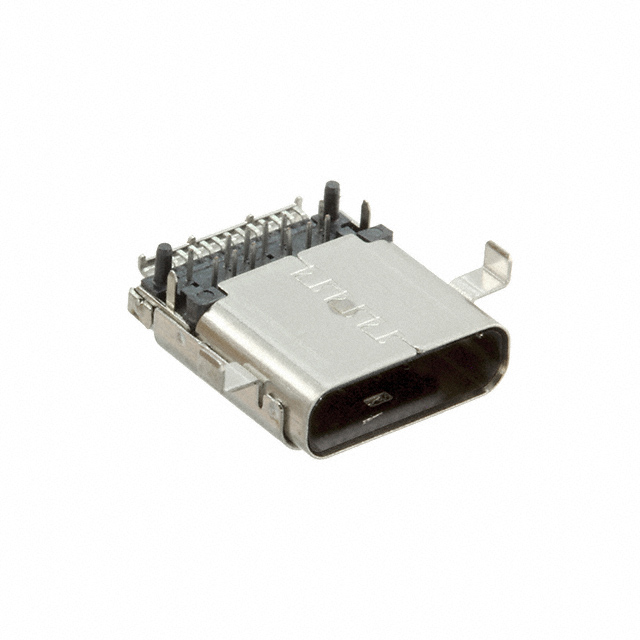

CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
C-BR20-AK511
ActiveCnC Tech, LLC
CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C-BR20-AK511 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A |
| Features | Pick and Place |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.74 | |
| 10 | $ 3.39 | |||
| 25 | $ 3.21 | |||
| 50 | $ 3.14 | |||
| 100 | $ 2.99 | |||
| 250 | $ 2.62 | |||
| Digi-Reel® | 1 | $ 3.74 | ||
| 10 | $ 3.39 | |||
| 25 | $ 3.21 | |||
| 50 | $ 3.14 | |||
| 100 | $ 2.99 | |||
| 250 | $ 2.62 | |||
| Tape & Reel (TR) | 900 | $ 1.85 | ||
Description
General part information
C-BR20-AK Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
