SSB1-72F16-2790-00

Active

New Energy

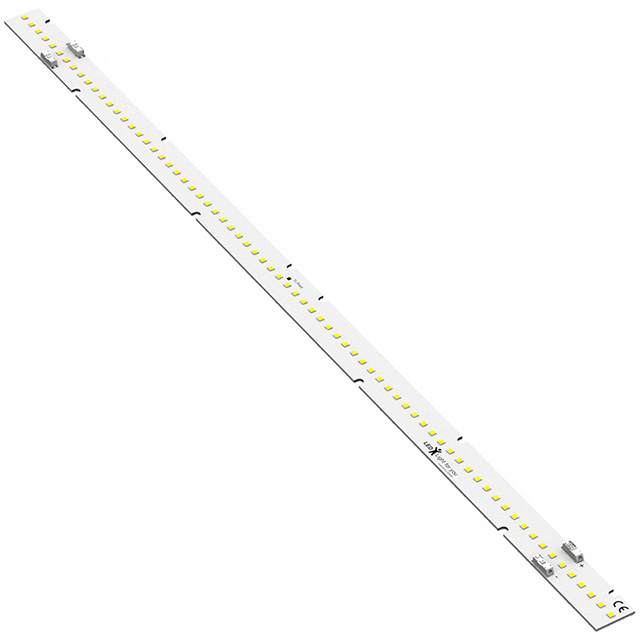

LED MOD SSB1 WHT LNR STRP 2700K

Search across all available documentation for this part.

Active

New Energy

LED MOD SSB1 WHT LNR STRP 2700K

Technical Specifications

Parameters and characteristics for this part

Specification	SSB1-72F16-2790-00

CCT (K)	2700 K
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	90
Current - Max [Max]	1.08 A
Current - Test	390 mA
Height [z]	6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	171 lm/W
Luminous Flux @ Current/Temperature	2196 lm
Size / Dimension [x]	559.5 mm
Size / Dimension [y]	22 mm
Temperature - Test	65 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	33 V

Part	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CCT (K)	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Lens Type	Size / Dimension [y]	Size / Dimension [x]	Configuration	Type	Temperature - Test	CRI (Color Rendering Index)	Height [z]	Color	Current - Test
New Energy SSB1-72F16-2790-00	2196 lm	171 lm/W	2700 K	1.08 A	33 V	Flat	22 mm	559.5 mm	Linear Light Strip	LED Module	65 °C	90	6 mm	Warm White	390 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 33.88

General part information

LED Lighting COBs Engines Modules LED Module SSB1 White, Warm Linear Light Strip
