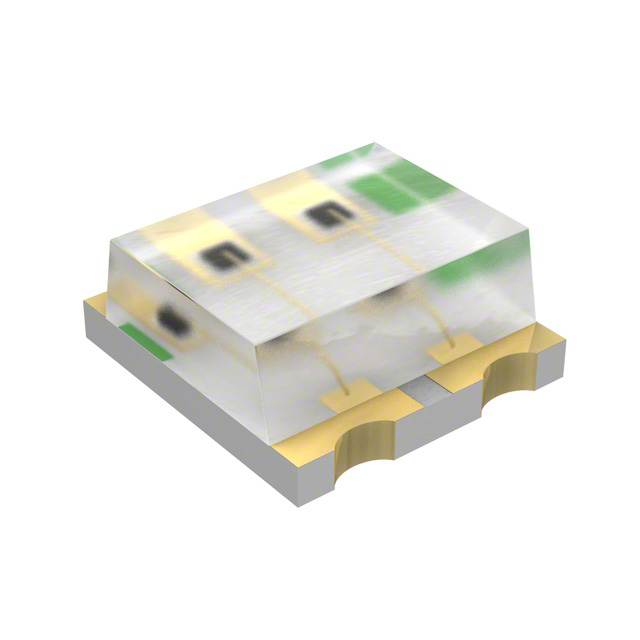

SML-LX0606YGC-TR

Active

Lumex Opto/Components Inc.

LED GRN/YLW CLEAR SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GRN/YLW CLEAR SMD

Technical Specifications

Parameters and characteristics for this part

Part	Lens Style	Wavelength - Peak	Height (Max) [Max] [z]	Lens Size [x]	Lens Size [y]	Current - Test	Package / Case	Viewing Angle	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Voltage - Forward (Vf) (Typ)	Lens Color	Configuration	Color	Millicandela Rating	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Height (Max) [Max]
Lumex Opto/Components Inc. SML-LX0606YGC-TR	Rectangle with Flat Top	565 nm 585 nm	0.7 mm	1.1 mm	1.5 mm	20 mA 20 mA	0606 1616 Metric	120 °	Clear	1.5 mm	1.6 mm	Surface Mount	2.1 V 2.2 V	Colorless	Independent	Green Yellow	10mcd Green 10mcd Yellow
Lumex Opto/Components Inc. SML-LX0606SISUGC/A	Rectangle with Flat Top			1.5 mm	1.2 mm	20 mA 20 mA	0606 1616 Metric	120 °	Clear	1.5 mm	1.6 mm	Surface Mount		Colorless	Independent	Green Red		2 V	2 V	50 mcd	50 mcd	639 nm	575 nm	1.5 mm
Lumex Opto/Components Inc. SML-LX0606IGC-TR	Rectangle with Flat Top	565 nm 635 nm	0.7 mm	1.1 mm	1.5 mm	20 mA 20 mA	0606 1616 Metric	120 °	Clear	1.5 mm	1.6 mm	Surface Mount	2 V 2.2 V	Colorless	Independent	Green Red	10mcd Green 10mcd Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 0606 (1616 Metric)
