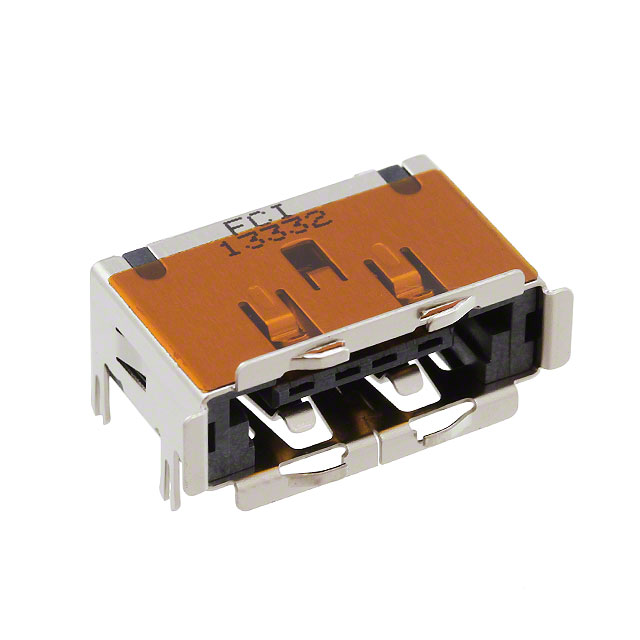

10074703-001RLF

Obsolete

Amphenol ICC (FCI)

CONN RCP USB A/ESATA COMBO 7P RA

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN RCP USB A/ESATA COMBO 7P RA

Technical Specifications

Parameters and characteristics for this part

Specification	10074703-001RLF

Connector Type	USB-A (USB TYPE-A), eSATA, Combo
Contact Finish	Gold
Features	Board Guide, Board Lock
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	7
Number of Ports	1
Shell/Shielding Material	Copper Alloy
Termination	Solder

Part	Gender	Shell/Shielding Material	Mounting Feature	Contact Finish	Number of Contacts	Material Flammability Rating	Termination	Connector Type	Number of Ports	Mounting Type	Insulation Color	Features
Amphenol ICC (FCI) 10074703-001RLF	Receptacle	Copper Alloy	Horizontal	Gold	7	UL94 V-0	Solder	Combo eSATA USB-A (USB TYPE-A)	1	Through Hole Right Angle	Black	Board Guide Board Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-A (USB TYPE-A) and eSATA, Combo Receptacle Connector 7 Position Through Hole, Right Angle
