P08-100SL-B-G

Obsolete

3M (TC)

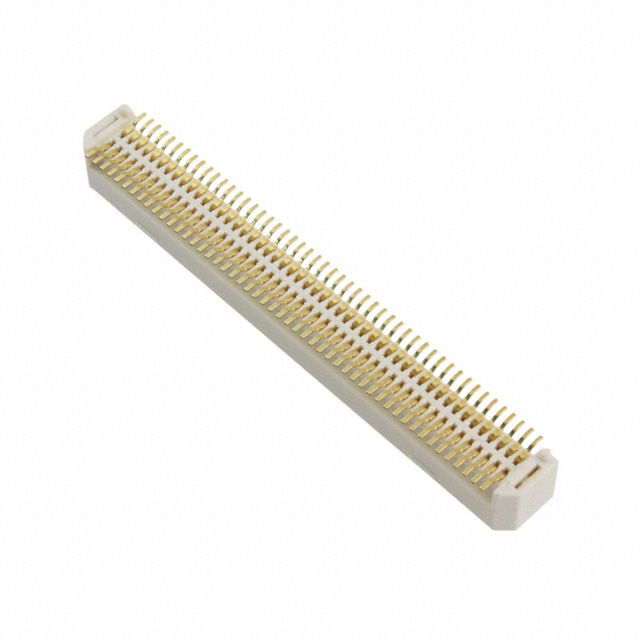

CONN SOCKET 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

P08-100SL-B-G

Obsolete

3M (TC)

CONN SOCKET 100POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P08-100SL-B-G

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Board Guide
Height Above Board	0.205 in
Height Above Board	5.2 mm
Mated Stacking Heights	8 mm, 7 mm, 6 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

P08 Series

Part	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Height Above Board	Height Above Board	Connector Type	Mated Stacking Heights [z]
3M (TC) P08-040-PLC-A-G	0.8 mm	0.031 in	2	Gold	2.72 mm	0.107 in	40	Board Guide	Surface Mount	8 çin	0.203 çm	3 mm 6 mm
3M (TC) P08-020SLTC-A-G	0.8 mm	0.031 in	2	Gold			20	Board Guide	Surface Mount	8 çin	0.203 çm		0.087 in	2.2 mm	Outer Shroud Contacts Socket	3 mm 4 mm 5 mm
3M (TC) P08-100SL-B-G	0.8 mm	0.031 in	2	Gold			100	Board Guide	Surface Mount	8 çin	0.203 çm	6 mm 7 mm 8 mm	0.205 in	5.2 mm	Outer Shroud Contacts Socket
3M (TC) P08-050HLTC-E-G	0.8 mm	0.031 in	2	Gold			50	Board Guide Solder Retention	Surface Mount	8 çin	0.203 çm	11.5 mm	0.329 in	8.35 mm	Self Mating Non-Gendered Hermaphroditic
3M (TC) P08-080SL-A-G	0.8 mm	0.031 in	2	Gold			80	Board Guide	Surface Mount	8 çin	0.203 çm		0.087 in	2.2 mm	Outer Shroud Contacts Socket	3 mm 4 mm 5 mm
3M (TC) P08-030PLTC-A-G	0.8 mm	0.031 in	2	Gold	2.72 mm	0.107 in	30	Board Guide	Surface Mount	8 çin	0.203 çm	3 mm 6 mm
3M (TC) P08-020SL-B-G	0.8 mm	0.031 in	2	Gold			20	Board Guide	Surface Mount	8 çin	0.203 çm	6 mm 7 mm 8 mm	0.205 in	5.2 mm	Outer Shroud Contacts Socket
3M (TC) P08-060SLC-B-G	0.8 mm	0.031 in	2	Gold			60	Board Guide	Surface Mount	8 çin	0.203 çm	6 mm 7 mm 8 mm	0.205 in	5.2 mm	Outer Shroud Contacts Socket
3M (TC) P08-100SLTC-B-G	0.8 mm	0.031 in	2	Gold			100	Board Guide	Surface Mount	8 çin	0.203 çm	6 mm 7 mm 8 mm	0.205 in	5.2 mm	Outer Shroud Contacts Socket
3M (TC) P08-080PLC-C-G	0.8 mm	0.031 in	2	Gold			80	Board Guide	Surface Mount	8 çin	0.203 çm	5 mm 8 mm	0.186 "	4.72 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

P08 Series

100 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
