50013PABS7035

Active

Jacob GmbH

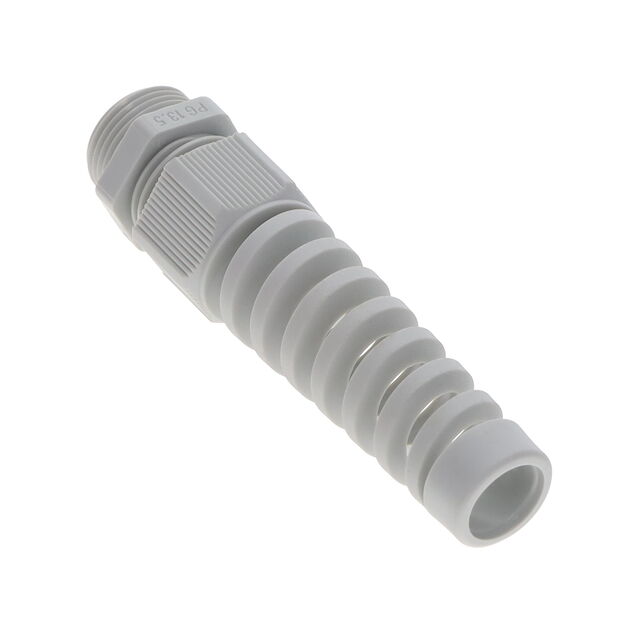

CABLE GLAND 6-12MM PG13.5

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 6-12MM PG13.5

Technical Specifications

Parameters and characteristics for this part

Specification	50013PABS7035

Color	Gray
Includes	Strain Relief
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	0.354 in
Thread Length	9 mm
Thread Size	PG13.5
Type	Cable Gland

Part	Type	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Thread Size	Thread Length	Thread Length	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Jacob GmbH 50013PABS7035	Cable Gland	IP68 - Dust Tight Waterproof	6 mm	0.236 in	Gray	PG13.5	0.354 in	9 mm	Strain Relief	100 °C	-40 °C	0.472 in	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG13.5 Gray
