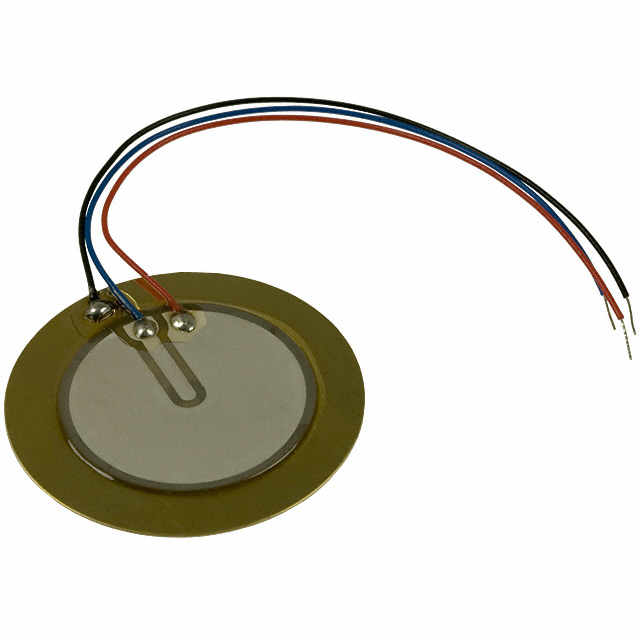

CEB-35FD29

Active

CUI Devices

AUDIO DIAPHRAGM PIEZO 30VP-P 2400HZ TO 3400HZ THROUGH HOLE WIRE LEAD BOX

Search across all available documentation for this part.

Active

CUI Devices

AUDIO DIAPHRAGM PIEZO 30VP-P 2400HZ TO 3400HZ THROUGH HOLE WIRE LEAD BOX

Technical Specifications

Parameters and characteristics for this part

Part	Type	Capacitance @ Frequency	Impedance	Termination	Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
CUI Devices CEB-35FD29	Feedback	25000 pF	500 Ohms	Wire Leads	2.9 kHz	1.378 in	35 mm	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.9 kHz Feedback Buzzer Element 30V p-p 1.378" Dia (35.00mm) 500 Ohms
