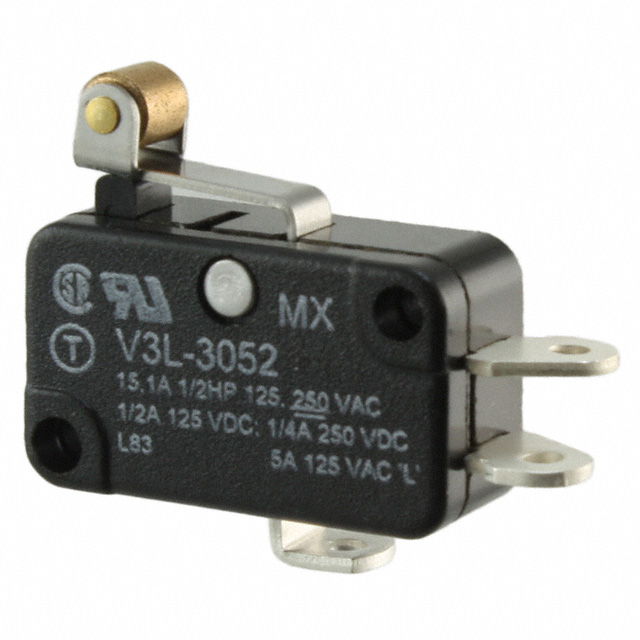

V3L-3052
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V3L-3052
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V3L-3052 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 500 mA, 15 A |
| Differential Travel | 0.012 " |
| Differential Travel | 0.3 mm |
| Mounting Type | Chassis Mount |
| Operating Force | 180 gf |
| Operating Position | 0.812 in |
| Operating Position | 20.6 mm |
| Overtravel | 0.032 in |
| Overtravel | 0.81 mm |
| Pretravel | 0.052 in |
| Pretravel | 1.32 mm |
| Release Force | 15 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 169.04 | |
| 10 | $ 140.08 | |||
| 25 | $ 129.97 | |||
| 50 | $ 122.80 | |||
Description
General part information
V3L-30 Series
Switch SPDT Chassis Mount
