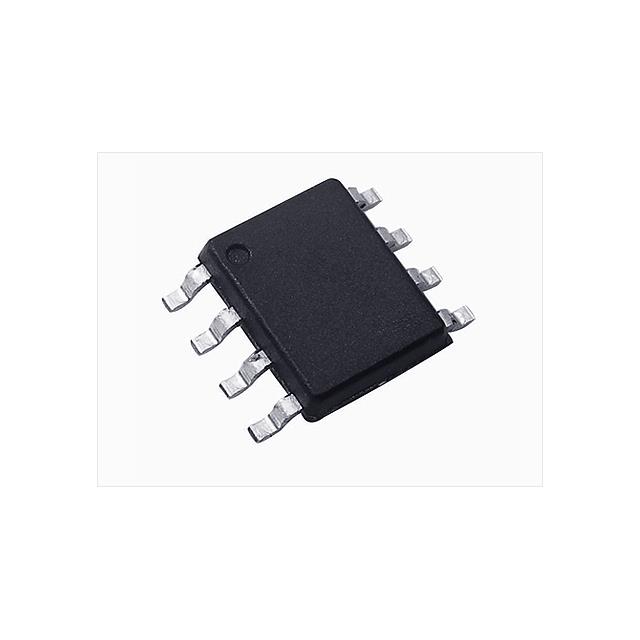

SMDA36C

Active

SMC Diode Solutions

TVS DIODE 36VWM 60VC 8-SO

Search across all available documentation for this part.

Active

SMC Diode Solutions

TVS DIODE 36VWM 60VC 8-SO

Technical Specifications

Parameters and characteristics for this part

Specification	SMDA36C

Applications	General Purpose
Bidirectional Channels [custom]	4
Capacitance @ Frequency	25 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Power - Peak Pulse	300 W
Power Line Protection	False
Supplier Device Package	8-SO
Type	Zener
Voltage - Breakdown (Min) [Min]	40 V
Voltage - Clamping (Max) @ Ipp [Max]	60 V
Voltage - Reverse Standoff (Typ)	36 V

Part	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Unidirectional Channels [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Applications	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Type	Bidirectional Channels [custom]
SMC Diode Solutions SMDA36	36 V	40 V	300 W	4	Surface Mount	125 ¯C	-55 °C	8-SOIC	3.9 mm	0.154 in	General Purpose	1 A	80 pF	51 V	8-SO	Zener
SMC Diode Solutions SMDA36C	36 V	40 V	300 W		Surface Mount	125 ¯C	-55 °C	8-SOIC	3.9 mm	0.154 in	General Purpose		25 pF	60 V	8-SO	Zener	4
SMC Diode Solutions SMDA36C-4	36 V	40 V	300 W		Surface Mount	125 ¯C	-55 °C	8-SOIC	3.9 mm	0.154 in	General Purpose	1 A	25 pF	60 V	8-SO	Zener	4
SMC Diode Solutions SMDA36LCC	36 V	40 V	300 W		Surface Mount	125 ¯C	-55 °C	8-SOIC	3.9 mm	0.154 in	General Purpose	1 A	15 pF	60 V	8-SO	Zener	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60V Clamp 1A Ipp Tvs Diode Surface Mount 8-SO
