Q-1U04G0005.25M
ActiveAmphenol Custom Cable

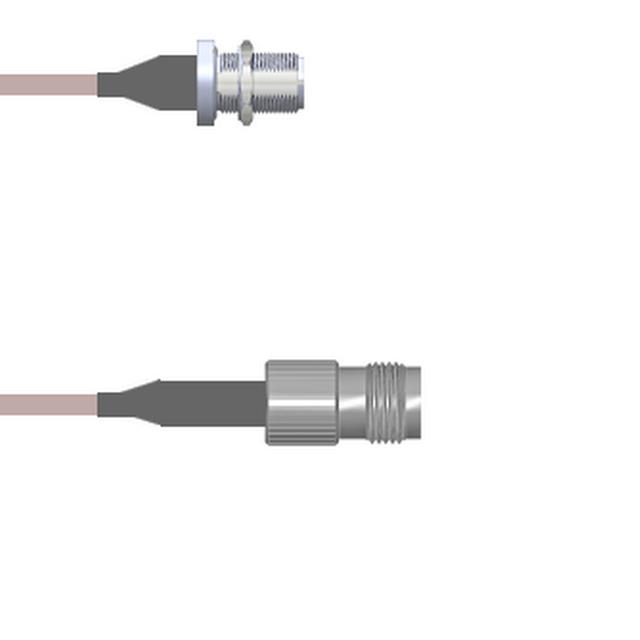

CBL ASSY NTYPE-TNC JK-JK 9.843"
Deep-Dive with AI
Search across all available documentation for this part.
Q-1U04G0005.25M
ActiveAmphenol Custom Cable
CBL ASSY NTYPE-TNC JK-JK 9.843"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1U04G0005.25M |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length [x] | 9.843 " |
| Length [x] | 250 mm |
| Overall Impedance | 50 Ohms |
Q-1U04G0 Series
| Part | Features | 1st Connector | Color | 1st Connector Mounting Feature | 2nd Connector Mounting Type | 1st Connector Mounting Type | 1st Contact Gender | Cable Type | 2nd Connector | 2nd Contact Gender | Length | Length | Length | Overall Impedance | Frequency - Max [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Shielded | N-Type Jack | Copper | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Panel Mount | Female | RG-316 | TNC Jack | Female | 59.1 in | 4.9 ft | 1.5 m | 50 Ohms | 11 GHz | ||
Amphenol Custom Cable | Shielded | N-Type Jack | Copper | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Panel Mount | Female | RG-316 | TNC Jack | Female | 78.7 in | 6.6 ft | 2 m | 50 Ohms | 11 GHz | ||
Amphenol Custom Cable | Shielded | N-Type Jack | Black | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Panel Mount | Female | RG-174 | TNC Jack | Female | 78.7 in | 6.6 ft | 2 m | 50 Ohms | 11 GHz | ||
Amphenol Custom Cable | Shielded | N-Type Jack | Copper | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Panel Mount | Female | RG-316 | TNC Jack | Female | 50 Ohms | 11 GHz | 9.843 " | 250 mm | |||
Amphenol Custom Cable | Shielded | N-Type Jack | Black | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Panel Mount | Female | RG-174 | TNC Jack | Female | 24 " | 609.6 mm | 50 Ohms | 11 GHz | |||
Amphenol Custom Cable | Shielded | N-Type Jack | Black | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Panel Mount | Female | RG-174 | TNC Jack | Female | 50 Ohms | 11 GHz | 9.843 " | 250 mm | |||
Amphenol Custom Cable | Shielded | N-Type Jack | Copper | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Panel Mount | Female | RG-316 | TNC Jack | Female | 6 in | 152.4 mm | 50 Ohms | 11 GHz | |||
Amphenol Custom Cable | Shielded | N-Type Jack | Black | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Panel Mount | Female | RG-174 | TNC Jack | Female | 5 ' | 5 ft | 1.5 m | 50 Ohms | 11 GHz | ||
Amphenol Custom Cable | Shielded | N-Type Jack | Black | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Panel Mount | Female | RG-174 | TNC Jack | Female | 84 in | 7 ft | 2.1 m | 50 Ohms | 11 GHz | ||
Amphenol Custom Cable | Shielded | N-Type Jack | Copper | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Panel Mount | Female | RG-316 | TNC Jack | Female | 108 in | 9 ft | 2.7 m | 50 Ohms | 11 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 91.53 | |
| 25 | $ 89.80 | |||
| 50 | $ 88.07 | |||
| 100 | $ 86.34 | |||
| 250 | $ 84.61 | |||
Description
General part information
Q-1U04G0 Series
Cable Assembly Coaxial N-Type to TNC RG-316 9.843" (250.00mm)
