OD2506-05HSS

Active

Orion Fans

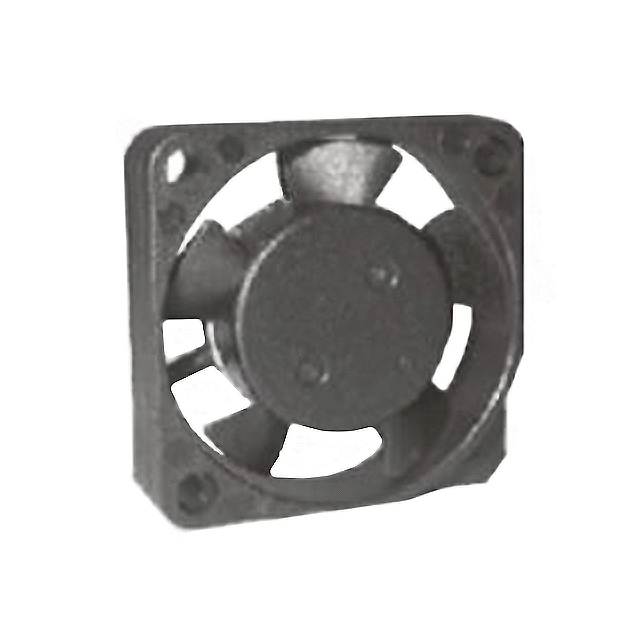

FAN AXIAL 25X6MM 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD2506-05HSS

Active

Orion Fans

FAN AXIAL 25X6MM 5VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD2506-05HSS

Air Flow	2.4 CFM
Air Flow	0.067 m³/min
Bearing Type	Sealed Sleeve
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	31 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	14000 RPM
Size / Dimension [x]	25 mm
Size / Dimension [z]	25 mm
Static Pressure	47.3 Pa
Static Pressure	0.19 in H2O
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	6 VDC
Voltage Range [Min]	3.5 VDC
Width [x]	6 mm

OD2506 Series

Part	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Fan Type	Bearing Type	Static Pressure	Static Pressure	Voltage - Rated	RPM	Voltage Range [Max]	Voltage Range [Min]	Termination	Size / Dimension [x]	Size / Dimension [z]	Material - Blade	Width [x]	Material - Frame	Current Rating (Amps)
Orion Fans OD2506-05LSS	1.8 CFM	0.05 mł/min	-20 °C	70 °C	-20 C	70 °C	20 dB	Tubeaxial	Sealed Sleeve	0.1 in H2O	24.9 Pa	5 V	9000 RPM	6 VDC	3.5 VDC	2 Wire Leads	25 mm	25 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	6 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD2506-05HSS	2.4 CFM	0.067 m³/min	-20 °C	70 °C	-20 C	70 °C	31 dB(A)	Tubeaxial	Sealed Sleeve	0.19 in H2O	47.3 Pa	5 V	14000 RPM	6 VDC	3.5 VDC	2 Wire Leads	25 mm	25 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	6 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	150 mA
Orion Fans OD2506-05LLSS	1.2 CFM	0.034 m³/min	-20 °C	70 °C	-20 C	70 °C	13 dB(A)	Tubeaxial	Sealed Sleeve	0.05 in H2O	12.4 Pa	5 V	7000 RPM	6 VDC	3.5 VDC	2 Wire Leads	25 mm	25 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	6 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD2506-12LLSS			-20 °C	70 °C	-20 C	70 °C		Tubeaxial	Sealed Sleeve			12 VDC		16 V	6 VDC	2 Wire Leads	25 mm	25 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	6 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD2506-12LSS			-20 °C	70 °C	-20 C	70 °C		Tubeaxial	Sealed Sleeve			12 VDC		16 V	6 VDC	2 Wire Leads	25 mm	25 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	6 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD2506-12HSS	2.4 CFM	0.067 m³/min	-20 °C	70 °C	-20 C	70 °C	31 dB(A)	Tubeaxial	Sealed Sleeve	0.19 in H2O	47.3 Pa	12 VDC	14000 RPM	16 V	6 VDC	2 Wire Leads	25 mm	25 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	6 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.09 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 8.21

Description

General part information

OD2506 Series

Fan Tubeaxial 5VDC Square - 25mm L x 25mm H Sealed Sleeve 2.4 CFM (0.067m³/min) 2 Wire Leads
