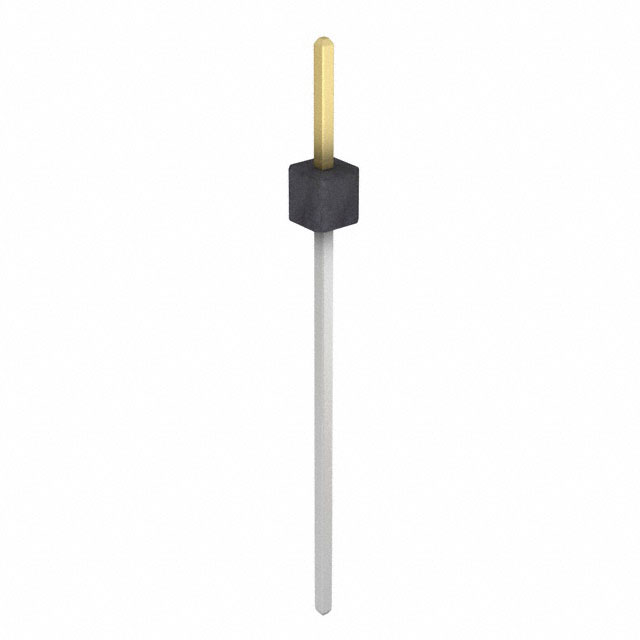

PZC01SAHN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 1POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSquare Post Header Datasheet

PZC01SAHN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 1POS

Deep-Dive with AI

DocumentsSquare Post Header Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PZC01SAHN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	20.83 mm
Contact Length - Post [x]	0.82 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	1.15 in
Overall Contact Length	29.21 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PZC01 Series

Part	Contact Finish - Post	Contact Finish - Mating	Insulation Color	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating [x]	Style	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Insulation Height	Insulation Height	Connector Type	Termination	Material Flammability Rating	Contact Type	Fastening Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Type	Current Rating (Amps)	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length
Sullins Connector Solutions PZC01SFCN	Tin	Gold	Black	1	0.318 "	8.08 mm	Board to Board Cable	All	0.32 in	8.13 mm	1	0.1 in	2.54 mm	Header	Solder	UL94 V-0	Male Pin	Push-Pull	Unshrouded	2.54 µm	100 µin	Polyester Thermoplastic	10 çin	0.25 çm	Copper Alloy	Through Hole	3 A	Square	0.738 "	18.75 mm
Sullins Connector Solutions PZC01DAEN	Tin	Gold	Black	2	0.23 in		Board to Board Cable	All			2	0.1 in	2.54 mm	Header	Solder	UL94 V-0	Male Pin	Push-Pull	Unshrouded	2.54 µm	100 µin	Polyester Thermoplastic	10 çin	0.25 çm	Copper Alloy	Through Hole	3 A	Square	0.85 in	21.59 mm	13.21 mm	0.52 "	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PZC01SAHN	Tin	Gold	Black	1	0.23 in		Board to Board Cable	All	0.82 in	20.83 mm	1	0.1 in	2.54 mm	Header	Solder	UL94 V-0	Male Pin	Push-Pull	Unshrouded	2.54 µm	100 µin	Polyester Thermoplastic	10 çin	0.25 çm	Copper Alloy	Through Hole	3 A	Square	1.15 in	29.21 mm			5.84 mm
Sullins Connector Solutions PZC01DFBN	Tin	Gold	Black	2	0.318 "	8.08 mm	Board to Board Cable	All			2	0.1 in	2.54 mm	Header	Solder	UL94 V-0	Male Pin	Push-Pull	Unshrouded	2.54 µm	100 µin	Polyester Thermoplastic	10 çin	0.25 çm	Copper Alloy	Through Hole	3 A	Square	0.638 in	16.21 mm	5.58 mm	0.22 in		2.54 mm	0.1 in
Sullins Connector Solutions PZC01SBCN	Tin	Gold	Black	1	0.23 in		Board to Board Cable	All	0.32 in	8.13 mm	1	0.14 in	3.56 mm	Header	Solder	UL94 V-0	Male Pin	Push-Pull	Unshrouded	2.54 µm	100 µin	Polyester Thermoplastic	10 çin	0.25 çm	Copper Alloy	Through Hole Right Angle	3 A	Square					5.84 mm
Sullins Connector Solutions PZC01SBDN	Tin	Gold	Black	1	0.23 in		Board to Board Cable	All	0.42 in	10.67 mm	1	0.14 in	3.56 mm	Header	Solder	UL94 V-0	Male Pin	Push-Pull	Unshrouded	2.54 µm	100 µin	Polyester Thermoplastic	10 çin	0.25 çm	Copper Alloy	Through Hole Right Angle	3 A	Square					5.84 mm
Sullins Connector Solutions PZC01SACN	Tin	Gold	Black	1	0.23 in		Board to Board Cable	All	0.32 in	8.13 mm	1	0.1 in	2.54 mm	Header	Solder	UL94 V-0	Male Pin	Push-Pull	Unshrouded	2.54 µm	100 µin	Polyester Thermoplastic	10 çin	0.25 çm	Copper Alloy	Through Hole	3 A	Square		0.65 in			5.84 mm			16.51 mm
Sullins Connector Solutions PZC01SFAN	Tin	Gold	Black	1	0.318 "	8.08 mm	Board to Board Cable	All	0.12 in	3.05 mm	1	0.1 in	2.54 mm	Header	Solder	UL94 V-0	Male Pin	Push-Pull	Unshrouded	2.54 µm	100 µin	Polyester Thermoplastic	10 çin	0.25 çm	Copper Alloy	Through Hole	3 A	Square	0.538 "	13.67 mm
Sullins Connector Solutions PZC01SFDN	Tin	Gold	Black	1	0.318 "	8.08 mm	Board to Board Cable	All	0.42 in	10.67 mm	1	0.1 in	2.54 mm	Header	Solder	UL94 V-0	Male Pin	Push-Pull	Unshrouded	2.54 µm	100 µin	Polyester Thermoplastic	10 çin	0.25 çm	Copper Alloy	Through Hole	3 A	Square	0.838 in	21.29 mm
Sullins Connector Solutions PZC01SAAN	Tin	Gold	Black	1	0.23 in		Board to Board Cable	All	0.12 in	3.05 mm	1	0.1 in	2.54 mm	Header	Solder	UL94 V-0	Male Pin	Push-Pull	Unshrouded	2.54 µm	100 µin	Polyester Thermoplastic	10 çin	0.25 çm	Copper Alloy	Through Hole	3 A	Square	0.45 "	11.43 mm			5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PZC01 Series

Connector Header Through Hole 1 position

Documents

Technical documentation and resources

Square Post Header

Datasheet
