892-018-556-212
ActiveEDAC Inc.

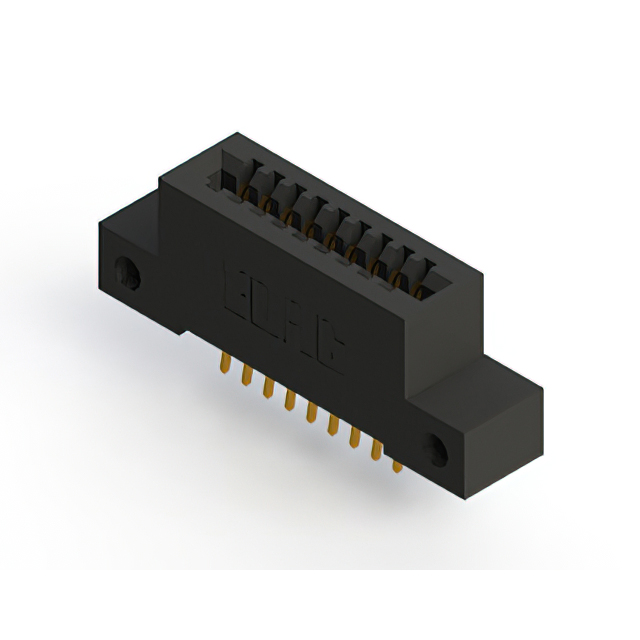

CARD EDGE CONNECTOR, 18 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE .128, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-018-556-212
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 18 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE .128, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-018-556-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 18 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-018 Series
...
| Part | Material - Insulation | Number of Positions | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Color | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Termination Rows | Pitch [x] | Pitch [x] | Number of Rows | Contact Finish | Number of Positions/Bay/Row [custom] | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyphenylene Sulfide (PPS) | 18 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 10 Áin | 0.25 Ám | Cantilever | Black | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | 1 | Gold | 18 | Copper Alloy | 125 °C | -40 °C | Solder | |
EDAC Inc. | Polyphenylene Sulfide (PPS) | 18 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | Cantilever | Black | Female | Non Specified - Dual Edge | 2 | 2.54 mm | 0.1 in | 2 | Gold | 9 | Copper Alloy | 125 °C | -40 °C | Solder | ||||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 18 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 10 Áin | 0.25 Ám | Cantilever | Black | Female | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | 1 | Gold | 18 | Copper Alloy | 125 °C | -40 °C | Solder | |||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 18 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | Cantilever | Black | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | 2.54 mm | 0.1 in | 2 | Gold | 9 | Copper Alloy | 125 °C | -40 °C | Solder | |||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 18 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | Cantilever | Black | Female | Non Specified - Dual Edge | 2 | 2.54 mm | 0.1 in | 2 | Gold | 9 | Copper Alloy | 125 °C | -40 °C | Solder | ||||
EDAC Inc. | Polyphenylene Sulfide (PPS) | 18 | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | Cantilever | Black | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | 2 | 2.54 mm | 0.1 in | 2 | Gold | 9 | Copper Alloy | 125 °C | -40 °C | Solder | Card Extender |
EDAC Inc. | Polyphenylene Sulfide (PPS) | 18 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | Cantilever | Black | Female | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Dual Edge | 2 | 2.54 mm | 0.1 in | 2 | Gold | 9 | Copper Alloy | 125 °C | -40 °C | Solder | |
EDAC Inc. | Polyphenylene Sulfide (PPS) | 18 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 10 Áin | 0.25 Ám | Cantilever | Black | Female | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | 1 | Gold | 18 | Copper Alloy | 125 °C | -40 °C | Solder Eyelet(s) | |
EDAC Inc. | Polyphenylene Sulfide (PPS) | 18 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 10 Áin | 0.25 Ám | Cantilever | Black | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | 1 | Gold | 18 | Copper Alloy | 125 °C | -40 °C | Solder Eyelet(s) | |
EDAC Inc. | Polyphenylene Sulfide (PPS) | 18 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 10 Áin | 0.25 Ám | Cantilever | Black | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | 1 | Gold | 18 | Copper Alloy | 125 °C | -40 °C | Wire Wrap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 66.02 | |
Description
General part information
892-018 Series
18 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
