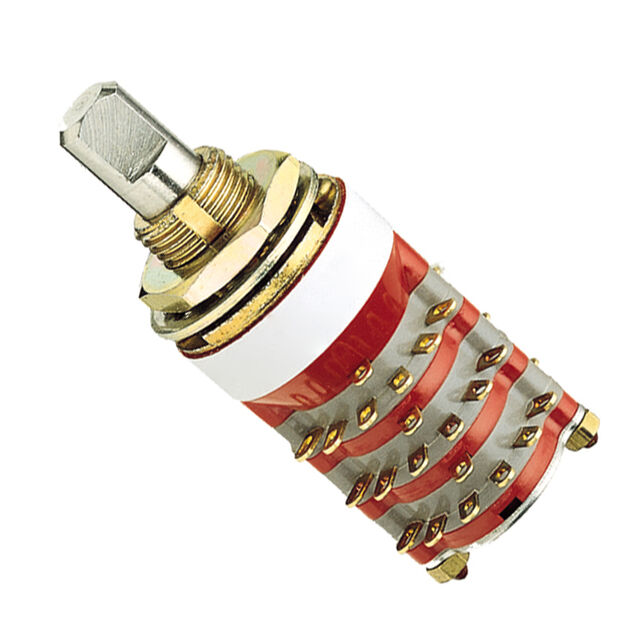

71EDF30-01-1-AJS

Active

Grayhill Inc.

SWITCH ROTARY 2-12POS 250MA 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 2-12POS 250MA 115V

Technical Specifications

Parameters and characteristics for this part

Specification	71EDF30-01-1-AJS

Actuator Length [x]	17 mm
Actuator Type	Round
Actuator Type [diameter]	4 mm
Angle of Throw	30 °
Circuit per Deck	SP12T
Contact Material	Silver Alloy
Contact Timing	Shorting
Current Rating (Amps)	250 mA
Depth Behind Panel [z]	19.33 mm
Index Stops	Adjustable
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions [Max]	12
Number of Positions [Min]	2
Termination Style	PC Pin
Voltage Rating - AC	115 V
Voltage Rating - DC	30 V

Part	Circuit per Deck	Voltage Rating - DC	Contact Timing	Number of Poles per Deck	Index Stops	Angle of Throw	Current Rating (Amps)	Termination Style	Actuator Type	Actuator Type [diameter]	Voltage Rating - AC	Contact Material	Depth Behind Panel [z]	Mounting Type	Number of Decks [custom]	Number of Positions [Max]	Number of Positions [Min]	Actuator Length [x]
Grayhill Inc. 71EDF30-01-1-AJS	SP12T	30 V	Shorting	1	Adjustable	30 °	250 mA	PC Pin	Round	4 mm	115 V	Silver Alloy	19.33 mm	Panel Mount Right Angle Through Hole	1	12	2	17 mm
Grayhill Inc. 71EDF30-03PAJS		30 V	Shorting	1	Adjustable	30 °	250 mA	PC Pin	Flatted	3.17 mm	115 V	Silver Alloy		Panel Mount Right Angle Through Hole				9.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 30.11

General part information

Rotary Switch 2 ~ 12 Position SP12T 250mA (AC/DC) 115 VAC Panel Mount, Through Hole, Right Angle
