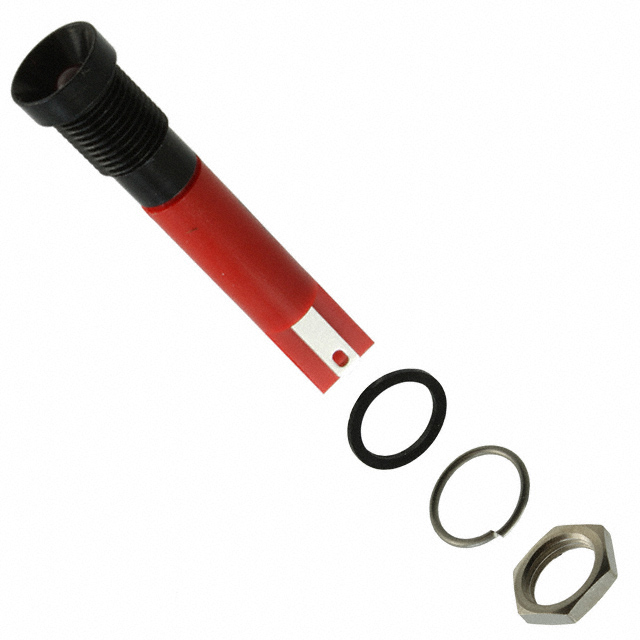

Q8R1BXXR24E

Active

APEM

INDICATOR 24V 8MM RECESSED RED

Search across all available documentation for this part.

Active

APEM

INDICATOR 24V 8MM RECESSED RED

Technical Specifications

Parameters and characteristics for this part

Specification	Q8R1BXXR24E

Ingress Protection	IP67
Lamp Color	Red
Lens Color	Red
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	100 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Solder Lug
Type	LED
Viewing Angle	100 °
Voltage	24 V

Part	Panel Cutout Shape	Type	Voltage	Lens Color	Viewing Angle	Lamp Color	Lens Size	Lens Size	Lens Style	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Millicandela Rating	Lens Transparency	Termination Style	Ingress Protection	Ratings
APEM Q8R1BXXR24E	Round	LED	24 V	Red	100 °	Red	T-1 3/4	5 mm	Round with Domed Top	0.31 in	7.87 mm	100 mcd	Diffused	Solder Lug	IP67	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Diffused 100° 24V 20mA Solder Lug
