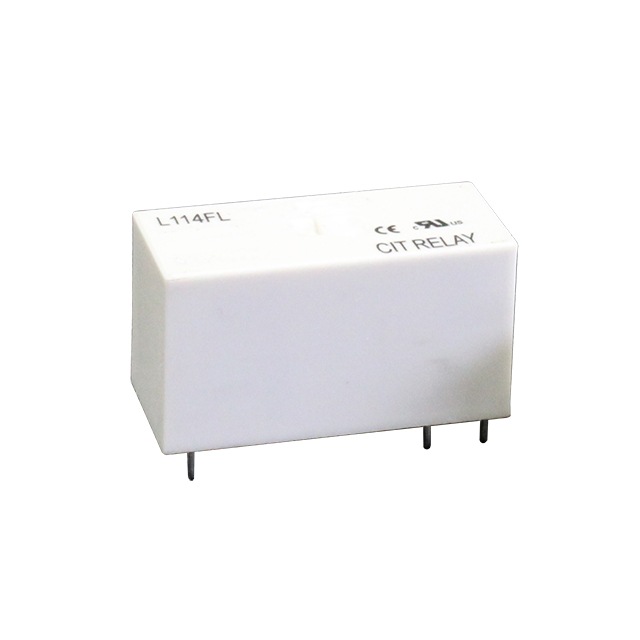

L114FL1CS24VDC.60DA

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 20A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L114FL1CS24VDC.60DA

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 20A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L114FL1CS24VDC.60DA

Coil Current	27.1 mA
Coil Resistance	886 Ohms
Coil Type	Latching, Dual Coil
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	20 A
Load - Max Switching	6000 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	300 VAC
Termination Style	PC Pin

L114FL1 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Contact Material	Coil Current	Switching Voltage [Max]	Contact Rating (Current)	Operate Time	Release Time	Coil Type	Termination Style	Load - Max Switching	Seal Rating	Mounting Type	Coil Voltage	Coil Resistance	Must Operate Voltage	Contact Form	Features
CIT Relay and Switch L114FL1CS5VDC.40	85 °C	-40 °C	General Purpose	Silver Tin Oxide (AgSnO)	80 mA	300 VAC	20 A	10 ms	10 ms	Latching Single Coil	PC Pin	6000 VA	Sealed - Fully	Through Hole	5 VDC	62.5 Ohms	3.5 VDC	SPDT (1 Form C)
CIT Relay and Switch L114FL1AS12VDC.40R	85 °C	-40 °C	General Purpose	Silver Tin Oxide (AgSnO)	33.3 mA	300 VAC	20 A	10 ms	10 ms	Latching Single Coil	PC Pin	6000 VA	Sealed - Fully	Through Hole	12 VDC	360 Ohms	8.4 VDC	SPST-NO (1 Form A)	Reverse Coil Polarity
CIT Relay and Switch L114FL1CS5VDC.60DAU	85 °C	-40 °C	General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	119 mA	300 VAC	20 A	10 ms	10 ms	Latching Dual Coil	PC Pin	6000 VA	Sealed - Fully	Through Hole	5 VDC	42 Ohms	3.5 VDC	SPDT (1 Form C)
CIT Relay and Switch L114FL1AS12VDC.60RDAU	85 °C	-40 °C	General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	50 mA	300 VAC	20 A	10 ms	10 ms	Latching Dual Coil	PC Pin	6000 VA	Sealed - Fully	Through Hole	12 VDC	240 Ohms	8.4 VDC	SPST-NO (1 Form A)	Reverse Coil Polarity
CIT Relay and Switch L114FL1AS12VDC.60DAU	85 °C	-40 °C	General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	50 mA	300 VAC	20 A	10 ms	10 ms	Latching Dual Coil	PC Pin	6000 VA	Sealed - Fully	Through Hole	12 VDC	240 Ohms	8.4 VDC	SPST-NO (1 Form A)
CIT Relay and Switch L114FL1CS24VDC.60DA	85 °C	-40 °C	General Purpose	Silver Tin Oxide (AgSnO)	27.1 mA	300 VAC	20 A	10 ms	10 ms	Latching Dual Coil	PC Pin	6000 VA	Sealed - Fully	Through Hole	24 VDC	886 Ohms	16.8 VDC	SPDT (1 Form C)
CIT Relay and Switch L114FL1CS9VDC.60RD	85 °C	-40 °C	General Purpose	Silver Tin Oxide (AgSnO)	66.7 mA	300 VAC	20 A	10 ms	10 ms	Latching Dual Coil	PC Pin	6000 VA	Sealed - Fully	Through Hole	9 VDC	135 Ohms	6.3 VDC	SPDT (1 Form C)	Reverse Coil Polarity
CIT Relay and Switch L114FL1AS24VDC.40U	85 °C	-40 °C	General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	16.7 mA	300 VAC	20 A	10 ms	10 ms	Latching Single Coil	PC Pin	6000 VA	Sealed - Fully	Through Hole	24 VDC	1440 Ohms	16.8 VDC	SPST-NO (1 Form A)
CIT Relay and Switch L114FL1AS12VDC.60RDA	85 °C	-40 °C	General Purpose	Silver Tin Oxide (AgSnO)	50 mA	300 VAC	20 A	10 ms	10 ms	Latching Dual Coil	PC Pin	6000 VA	Sealed - Fully	Through Hole	12 VDC	240 Ohms	8.4 VDC	SPST-NO (1 Form A)	Reverse Coil Polarity
CIT Relay and Switch L114FL1AS9VDC.60DU	85 °C	-40 °C	General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	66.7 mA	300 VAC	20 A	10 ms	10 ms	Latching Dual Coil	PC Pin	6000 VA	Sealed - Fully	Through Hole	9 VDC	135 Ohms	6.3 VDC	SPST-NO (1 Form A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 2.71

Description

General part information

L114FL1 Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
