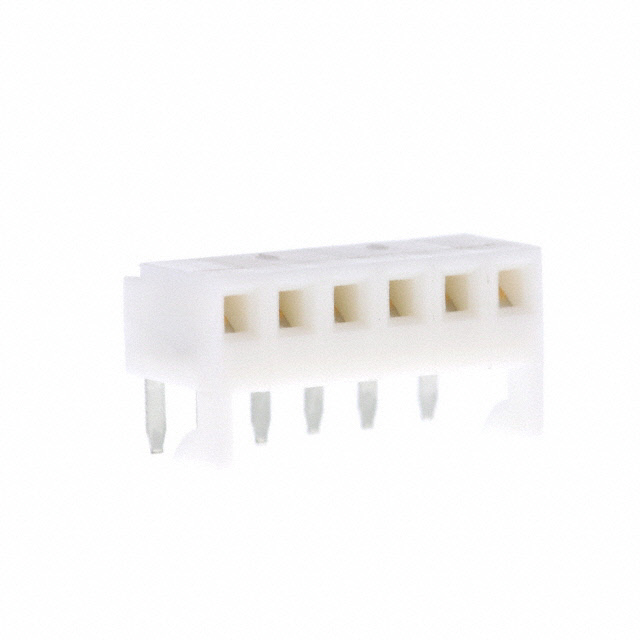

0022162060

Active

Molex

CONN RCPT 6POS 0.1 GOLD EDGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022162060

Active

Molex

CONN RCPT 6POS 0.1 GOLD EDGE MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022162060

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Non-Gendered
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

002216 Series

Part	Contact Type	Insulation Material	Connector Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Applications	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Voltage Rating	Style	Contact Material	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Features	Mounting Type	Termination	Fastening Type	Number of Positions
Molex 0022162070	Non-Gendered	Nylon Polyamide (PA)	Receptacle	Tin	2.54 µm	100 µin	1	Gold	3.35 mm	0.132 in	0.1 in	2.54 mm	Square	Automotive General Purpose Medical Telecommunications	All	-40 °C	80 C	UL94 V-0	2.5 A	7	250 VAC	Board to Board Cable	Brass	0.185 in	4.7 mm	15 µin	0.38 µm	White	Board Hooks	Board Edge Right Angle Through Hole	Solder	Push-Pull
Molex 0022162161	Non-Gendered	Nylon Polyamide (PA)	Receptacle	Gold	0.051 µm	2 µin	1	Gold	3.35 mm	0.132 in	0.1 in	2.54 mm	Square	Automotive General Purpose Medical Telecommunications	All	-40 °C	80 C	UL94 V-0	2.5 A		250 VAC	Board to Board Cable	Brass	0.185 in	4.7 mm	20 µin	0.51 µm	White	Board Hooks	Board Edge Right Angle Through Hole	Solder	Push-Pull	16
Molex 0022162060	Non-Gendered	Nylon Polyamide (PA)	Receptacle	Tin	2.54 µm	100 µin	1	Gold	3.35 mm	0.132 in	0.1 in	2.54 mm	Square	Automotive General Purpose Medical Telecommunications	All	-40 °C	80 C	UL94 V-0	2.5 A	6	250 VAC	Board to Board Cable	Brass	0.185 in	4.7 mm	15 µin	0.38 µm	White	Board Hooks	Board Edge Right Angle Through Hole	Solder	Push-Pull
Molex 0022162181	Non-Gendered	Nylon Polyamide (PA)	Receptacle	Gold	0.051 µm	2 µin	1	Gold	3.35 mm	0.132 in	0.1 in	2.54 mm	Square	Automotive General Purpose Medical Telecommunications	All	-40 °C	80 C	UL94 V-0	2.5 A	18	250 VAC	Board to Board Cable	Brass	0.185 in	4.7 mm	20 µin	0.51 µm	White	Board Hooks	Board Edge Right Angle Through Hole	Solder	Push-Pull
Molex 0022162140	Non-Gendered	Nylon Polyamide (PA)	Receptacle	Tin	2.54 µm	100 µin	1	Gold	3.35 mm	0.132 in	0.1 in	2.54 mm	Square	Automotive General Purpose Medical Telecommunications	All	-40 °C	80 C	UL94 V-0	2.5 A	14	250 VAC	Board to Board Cable	Brass	0.185 in	4.7 mm	15 µin	0.38 µm	White	Board Hooks	Board Edge Right Angle Through Hole	Solder	Push-Pull
Molex 0022162030	Non-Gendered	Nylon Polyamide (PA)	Receptacle	Tin	2.54 µm	100 µin	1	Gold	3.35 mm	0.132 in	0.1 in	2.54 mm	Square	Automotive General Purpose Medical Telecommunications	All	-40 °C	80 C	UL94 V-0	2.5 A		250 VAC	Board to Board Cable	Brass	0.185 in	4.7 mm	15 µin	0.38 µm	White	Board Hooks	Board Edge Right Angle Through Hole	Solder	Push-Pull
Molex 0022162121	Non-Gendered	Nylon Polyamide (PA)	Receptacle	Gold	0.051 µm	2 µin	1	Gold	3.35 mm	0.132 in	0.1 in	2.54 mm	Square	Automotive General Purpose Medical Telecommunications	All	-40 °C	80 C	UL94 V-0	2.5 A	12	250 VAC	Board to Board Cable	Brass	0.185 in	4.7 mm	20 µin	0.51 µm	White	Board Hooks	Board Edge Right Angle Through Hole	Solder	Push-Pull
Molex 0022162101	Non-Gendered	Nylon Polyamide (PA)	Receptacle	Gold	0.051 µm	2 µin	1	Gold	3.35 mm	0.132 in	0.1 in	2.54 mm	Square	Automotive General Purpose Medical Telecommunications	All	-40 °C	80 C	UL94 V-0	2.5 A	10	250 VAC	Board to Board Cable	Brass	0.185 in	4.7 mm	20 µin	0.51 µm	White	Board Hooks	Board Edge Right Angle Through Hole	Solder	Push-Pull
Molex 0022162160	Non-Gendered	Nylon Polyamide (PA)	Receptacle	Tin	2.54 µm	100 µin	1	Gold	3.35 mm	0.132 in	0.1 in	2.54 mm	Square	Automotive General Purpose Medical Telecommunications	All	-40 °C	80 C	UL94 V-0	2.5 A		250 VAC	Board to Board Cable	Brass	0.185 in	4.7 mm	15 µin	0.38 µm	White	Board Hooks	Board Edge Right Angle Through Hole	Solder	Push-Pull	16
Molex 0022162071	Non-Gendered	Nylon Polyamide (PA)	Receptacle	Gold	0.051 µm	2 µin	1	Gold	3.35 mm	0.132 in	0.1 in	2.54 mm	Square	Automotive General Purpose Medical Telecommunications	All	-40 °C	80 C	UL94 V-0	2.5 A	7	250 VAC	Board to Board Cable	Brass	0.185 in	4.7 mm	20 µin	0.51 µm	White	Board Hooks	Board Edge Right Angle Through Hole	Solder	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.86
		10	$ 0.72
		80	$ 0.60
		945	$ 0.52

Description

General part information

002216 Series

6 Position Receptacle Connector 0.100" (2.54mm) Board Edge, Through Hole, Right Angle Gold
