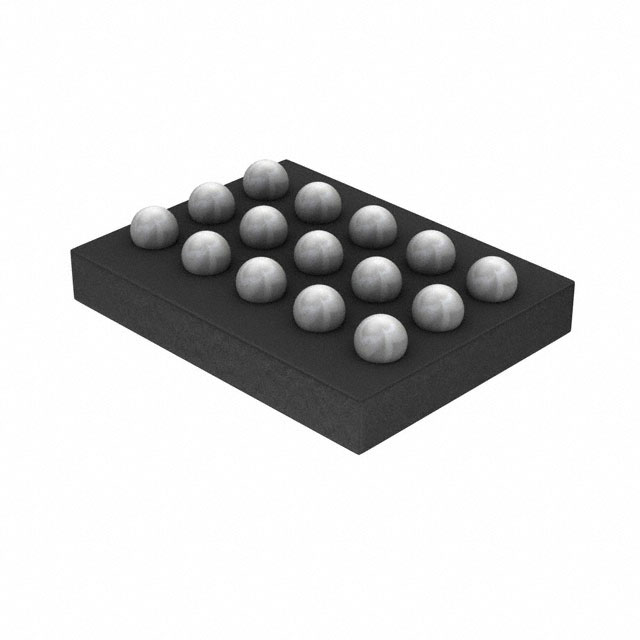

RT4723WSC
ActiveRichtek USA Inc.
IC REG AMOLED DISPL 2OUT 15WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT4723WSC
ActiveRichtek USA Inc.
IC REG AMOLED DISPL 2OUT 15WLCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT4723WSC |
|---|---|
| Applications | AMOLED Display, Converter |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 15-UFBGA, WLCSP |
| Supplier Device Package | 15-WLCSP |
| Supplier Device Package [x] | 2.07 |
| Supplier Device Package [y] | 1.39 |
| Voltage - Input [Max] | 4.6 V |
| Voltage - Input [Min] | 2.5 V |
| Voltage - Output | Adjustable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.94 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.64 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 0.95 | |||
| Digi-Reel® | 1 | $ 1.94 | ||
| 10 | $ 1.74 | |||
| 25 | $ 1.64 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 0.95 | |||
| Tape & Reel (TR) | 3000 | $ 0.90 | ||
| 6000 | $ 0.85 | |||
| 9000 | $ 0.83 | |||
Description
General part information
RT4723 Series
- Converter, AMOLED Display Voltage Regulator IC 2 Output 15-WLCSP (2.07x1.39)
