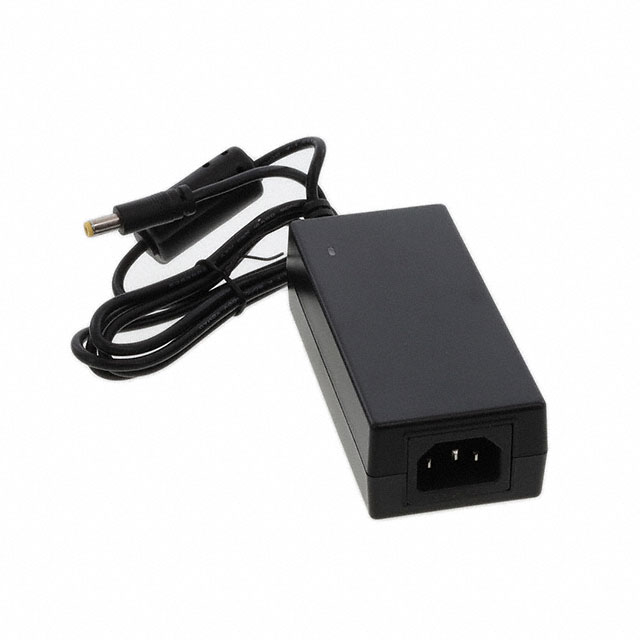

TR9CE5410CCPCIMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 65W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR9CE5410CCPCIMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 65W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CE5410CCPCIMR6B

Applications	ITE (Commercial), Medical
Approval Agency	FCC, EAC, CE, LPS, CB, S-Mark, ETL, UKRSepro, PSE, cETLus
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	5.41 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Standard Number	60601-1-2, 62368-1, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

TR9CE5410 Series

Part	Voltage - Output	No Load Power Consumption [Max]	Input Connector	Current - Output (Max) [Max]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Cord Length	Cord Length	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector [diameter]	Output Connector [z]	Input Type	Form	Power (Watts)	Applications	Polarization	Approval Agency	Output Connector [x]
GlobTek, Inc. TR9CE5410CCPCIMR6B	12 V	150 mW	IEC 320-C14	5.41 A	60601-1-11 60601-1-2 62368-1	-20 C	40 °C	1.2 m	47.2 in	CoC Tier 2 Level VI	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	International	90 VAC	264 VAC	Barrel Plug	2.1 mm 5.5 mm	11 mm	Cord	Desktop (Class I)	65 W	ITE (Commercial) Medical	Positive Center	CB CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro
GlobTek, Inc. TR9CE5410T00CIMR6B	12 V	150 mW	IEC 320-C14	5.41 A	60601-1-11 60601-1-2 62368-1	-20 C	40 °C	1.2 m	47.2 in	CoC Tier 2 Level VI	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	International	90 VAC	264 VAC	1.3mm x 3.5mm Barrel Plug Kit			Cord	Desktop (Class I)	65 W	ITE (Commercial) Medical	Negative Center	CB CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro
GlobTek, Inc. TR9CE5410LCPCIMR6B	12 V	150 mW	IEC 320-C14	5.41 A	60601-1-11 60601-1-2 62368-1	-20 C	40 °C	1.2 m	47.2 in	CoC Tier 2 Level VI	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	International	90 VAC	264 VAC	Barrel Plug	2.5 mm 5.5 mm		Cord	Desktop (Class I)	65 W	ITE (Commercial) Medical	Positive Center	CB CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro	11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.14
		5	$ 23.77
		10	$ 23.40
		30	$ 22.29
		60	$ 21.54
		120	$ 20.06
		270	$ 19.76

Description

General part information

TR9CE5410 Series

12V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
