0191410057

Active

Molex

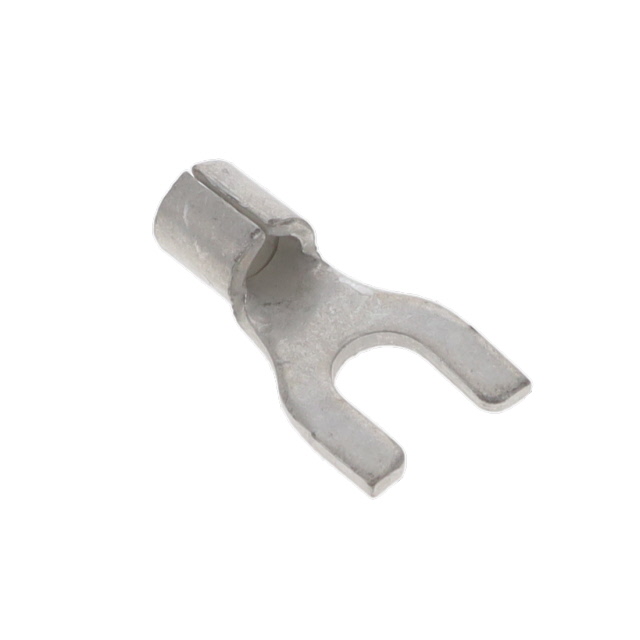

CONN SPADE TERM 14-16AWG #6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0190440069 Drawing/Datasheet

0191410057

Active

Molex

CONN SPADE TERM 14-16AWG #6

Deep-Dive with AI

DocumentsDatasheet 0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191410057

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall [x]	0.564 in
Length - Overall [x]	14.33 mm
Length - Ring Center to Termination [x]	0.211 in
Length - Ring Center to Termination [x]	5.36 mm
Length - Termination	4.19 mm
Length - Termination	0.165 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	3.71 mm
Tongue Inside Opening [x]	0.146 in
Width - Outer Edges [x]	0.295 in
Width - Outer Edges [x]	7.49 mm

019141 Series

Part	Mounting Type	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Contact Material	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Termination	Length - Termination	Termination	Contact Finish	Insulation	Terminal Type	Length - Overall	Length - Overall	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Length - Termination [custom]	Length - Termination [custom]
Molex 0191410056	Free Hanging (In-Line)	0.211 in	5.36 mm	3.71 mm	0.146 in	Copper	6 Stud	0.564 in	14.33 mm	0.295 in	7.49 mm	4.19 mm	0.165 in	Crimp	Electro-Tin	Non-Insulated	Standard
Molex 0191410057	Free Hanging (In-Line)	0.211 in	5.36 mm	3.71 mm	0.146 in	Copper	6 Stud	0.564 in	14.33 mm	0.295 in	7.49 mm	4.19 mm	0.165 in	Crimp	Electro-Tin	Non-Insulated	Standard
Molex 0191410063	Free Hanging (In-Line)	0.269 in	6.83 mm	4.39 mm	0.173 in	Copper						4.19 mm	0.165 in	Crimp	Electro-Tin	Non-Insulated	Standard	17.45 mm	0.687 in	9.19 mm	0.362 "	8 Stud
Molex 0191410022	Free Hanging (In-Line)	0.303 in	7.7 mm	4.39 mm	0.173 in	Copper		0.69 in				4.19 mm	0.165 in	Crimp	Electro-Tin	Non-Insulated	Standard	17.53 mm		8.03 mm	0.316 in	8 Stud	22 AWG	17.5 AWG
Molex 0191410085	Free Hanging (In-Line)	0.301 in	7.65 mm	5.03 mm	0.198 in	Copper	10 Stud	0.812 "	20.62 mm	0.375 in	9.53 mm			Crimp	Electro-Tin	Non-Insulated	Standard						12 AWG	10 AWG	0.245 in	6.22 mm
Molex 0191410084	Free Hanging (In-Line)	0.301 in	7.65 mm	4.39 mm	0.173 in	Copper		0.812 "	20.62 mm	0.375 in	9.53 mm			Crimp	Electro-Tin	Non-Insulated	Standard					8 Stud	12 AWG	10 AWG	0.245 in	6.22 mm
Molex 0191410024	Free Hanging (In-Line)	0.303 in	7.7 mm	5.03 mm	0.198 in	Copper	10 Stud	0.69 in				4.19 mm	0.165 in	Crimp	Electro-Tin	Non-Insulated	Standard	17.53 mm		8.03 mm	0.316 in		22 AWG	17.5 AWG
Molex 0191410081	Free Hanging (In-Line)	0.301 in	7.65 mm			Copper	6 Stud	0.812 "	20.62 mm	0.375 in	9.53 mm			Crimp	Electro-Tin	Non-Insulated	Standard						12 AWG	10 AWG	0.245 in	6.22 mm
Molex 0191410080	Free Hanging (In-Line)	0.305 "	7.75 mm	3.71 mm	0.146 in	Copper	6 Stud							Crimp	Electro-Tin	Non-Insulated	Standard	19.91 mm	0.784 in	8.13 mm	0.32 in		12 AWG	10 AWG	0.245 in	6.22 mm
Molex 0191410083	Free Hanging (In-Line)	0.301 in	7.65 mm	4.39 mm	0.173 in	Copper		0.812 "	20.62 mm	0.375 in	9.53 mm			Crimp	Electro-Tin	Non-Insulated	Standard					8 Stud	12 AWG	10 AWG	0.245 in	6.22 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.27
		10	$ 0.22
		25	$ 0.16
		50	$ 0.16
		100	$ 0.16
		250	$ 0.14
		500	$ 0.13
		1000	$ 0.12
	Tape & Reel (TR)	2000	$ 0.11
		4000	$ 0.11
		6000	$ 0.10
		10000	$ 0.10
		14000	$ 0.10
		20000	$ 0.09
		50000	$ 0.09
		100000	$ 0.08

Description

General part information

019141 Series

6 Stud Spade Terminal Connector Crimp 14-16 AWG
