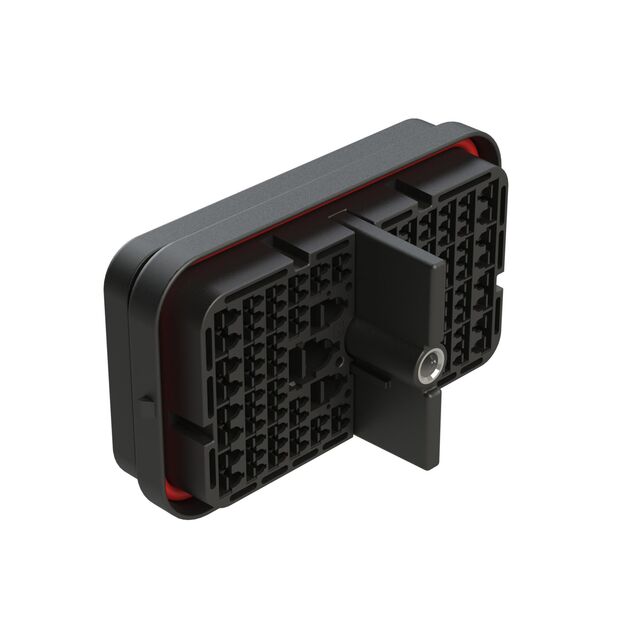

ARB12-102PCR-L018

Active

Amphenol Sine Systems Corp

102 POSITION RECEPTACLE WITH FLA

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

102 POSITION RECEPTACLE WITH FLA

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Features	Color	Number of Rows	Connector Type	Number of Positions	Mounting Type	Contact Termination
Amphenol Sine Systems Corp ARB12-102PCR-L018	Male Pin	Push-Pull	-55 °C	125 °C	Thermoplastic	IP68 IP69K Reduced Wire Seals	Black	12	Receptacle	102	Free Hanging (In-Line)	Crimp
Amphenol Sine Systems Corp ARB12-102PBR-L018	Male Pin	Push-Pull	-55 °C	125 °C	Thermoplastic	IP68 IP69K Reduced Wire Seals	Black	12	Receptacle	102	Free Hanging (In-Line)	Crimp
Amphenol Sine Systems Corp ARB12-48PDR-L018	Male Pin	Push-Pull	-55 °C	125 °C	Thermoplastic	IP68 IP69K Reduced Wire Seals	Black	12	Receptacle	48	Free Hanging (In-Line)	Crimp
Amphenol Sine Systems Corp ARB12-48PCR-L018	Male Pin	Push-Pull	-55 °C	125 °C	Thermoplastic	IP68 IP69K Reduced Wire Seals	Black	12	Receptacle	48	Free Hanging (In-Line)	Crimp
Amphenol Sine Systems Corp ARB12-102PDR-L018	Male Pin	Push-Pull	-55 °C	125 °C	Thermoplastic	IP68 IP69K Reduced Wire Seals	Black	12	Receptacle	102	Free Hanging (In-Line)	Crimp
Amphenol Sine Systems Corp ARB12-48PAR-L018	Male Pin	Push-Pull	-55 °C	125 °C	Thermoplastic	IP68 IP69K Reduced Wire Seals	Black	12	Receptacle	48	Free Hanging (In-Line)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

102 Rectangular Connectors - Housings Receptacle Black

Technical documentation and resources
