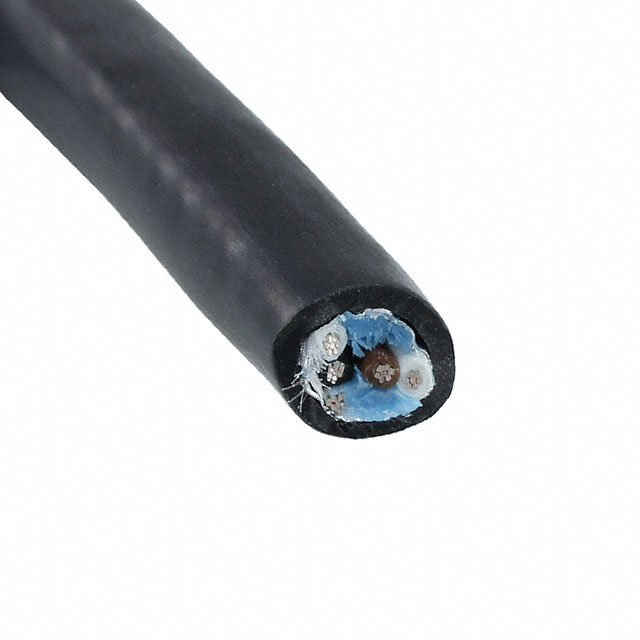

25492 BK005

Active

ALPHA WIRE

MULTI-PAIR 4COND 24AWG BLK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 4COND 24AWG BLK 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25492 BK005

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Material	Conductor Insulation	Shield Material	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Voltage	Length [x]	Length [x]	Number of Conductors	Conductor Material	Wire Gauge	Shield Coverage	Cable Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color
ALPHA WIRE 25492 BK005	Polyurethane (PU)	Poly-Vinyl Chloride (PVC)	Aluminum	ISO 10993 UL Style 20668	32 AWG	7	Foil	300 V	30.5 m	100 ft	4	Copper Tinned	24 AWG	100 %	Multi-Pair	Biological Compatibility Drain Wire Rip Cord	-30 ░C	90 °C	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 24 AWG Foil 100.0' (30.5m)
