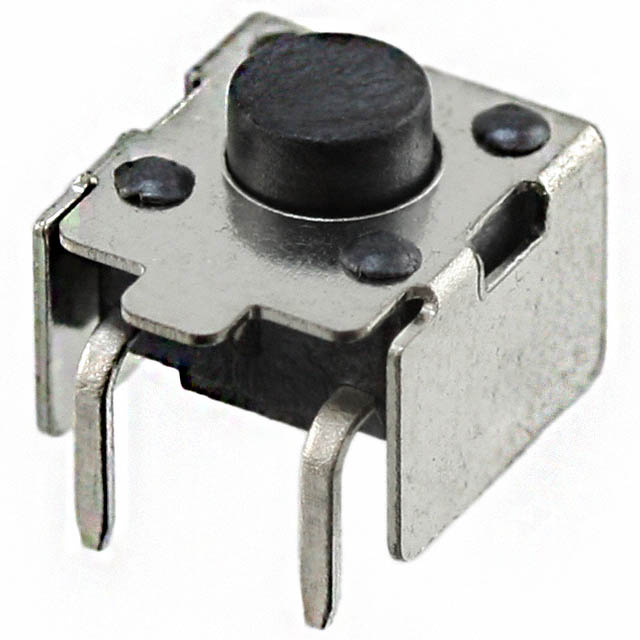

TL3320BF130Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Illumination	Mechanical Life	Switch Function	Contact Rating @ Voltage	Termination Style	Operating Force	Actuator Length, Right Angle	Mounting Type	Outline [y]	Outline [x]	Switch Travel	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Actuator Orientation	Actuator Material
E-Switch TL3320BF130Q	SPST-NO	Non-Illuminated	80000 Cycles	Off-Mom	0.05 A 12 VDC	Gull Wing	130 gf	3.85 mm	Surface Mount Right Angle	6.35 mm	7.1 mm	0.25 mm	-20 C	70 °C	Standard	Side Actuated	Nylon Polyamide (PA)
E-Switch TL3320BF250Q	SPST-NO	Non-Illuminated		Off-Mom	0.05 A 12 VDC	Gull Wing	0.25 kgf	3.85 mm	Surface Mount Right Angle	6.35 mm	7.1 mm	0.25 mm	-20 C	70 °C	Standard	Side Actuated	Nylon Polyamide (PA)
E-Switch TL3320AF130Q	SPST-NO	Non-Illuminated	80000 Cycles	Off-Mom	0.05 A 12 VDC	Gull Wing	130 gf	3.15 mm	Surface Mount Right Angle	6.35 mm	7.1 mm	0.25 mm	-20 C	70 °C	Standard	Side Actuated	Nylon Polyamide (PA)
E-Switch TL3320BF100Q	SPST-NO	Non-Illuminated	80000 Cycles	Off-Mom	0.05 A 12 VDC	Gull Wing	100 gf	3.85 mm	Surface Mount Right Angle	6.35 mm	7.1 mm	0.25 mm	-20 C	70 °C	Standard	Side Actuated	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
