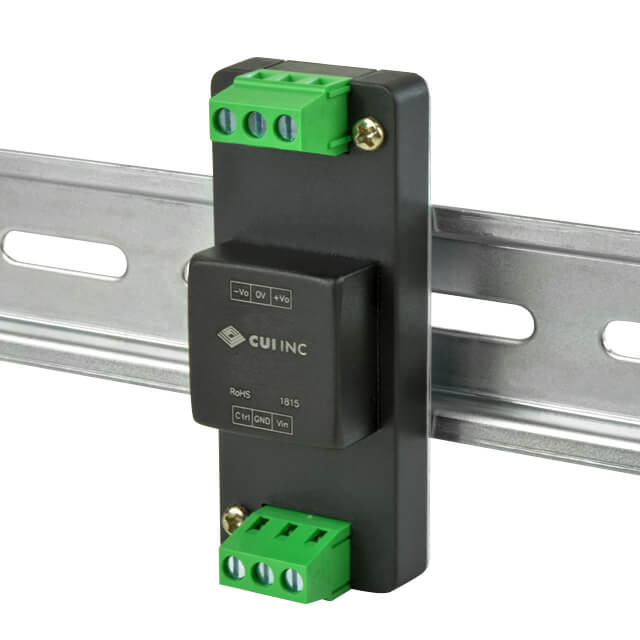

PDQE10-Q48-D24-DIN

CUI Inc.

DC/DC DIN RAIL SUPPLY +/-24V 10W

Deep-Dive with AI

Search across all available documentation for this part.

PDQE10-Q48-D24-DIN

CUI Inc.

DC/DC DIN RAIL SUPPLY +/-24V 10W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PDQE10-Q48-D24-DIN

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max)	208 mA
Current - Output (Max)	208 mA
DC Voltage - Input (Max) [Max]	75 V
DC Voltage - Input (Min) [Min]	18 V
Efficiency	87 %
Features	Remote On/Off
Input Type	DC
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	10 W
Size / Dimension [x]	2.99 in
Size / Dimension [x]	76 mm
Size / Dimension [y]	31.5 mm
Size / Dimension [y]	1.24 in
Size / Dimension [z]	22.2 mm
Size / Dimension [z]	0.87 in
Voltage - Isolation	1.5 kV
Voltage - Output 1	24 V
Voltage - Output 2	-24 V

PDQE10 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Output 1	Standard Number	Current - Output (Max)	Current - Output (Max)	Mounting Type	Efficiency	Package / Case	Voltage - Input (Max) [Max]	Power (Watts)	Type	Voltage - Isolation	Features	Applications	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 2	Voltage - Input (Min) [Min]	Input Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]
CUI Inc. PDQE10-Q24-D24-D	85 °C	-40 °C	CB Scheme EN IEC UL	24 V	55024 55032 Class A 60950-1	208 mA	208 mA	Through Hole	87 %	6-DIP Module	36 V	10 W	Isolated Module	1.5 kV	OCP OVP Remote On/Off SCP	ITE (Commercial)	2	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	-24 V	9 V
CUI Inc. PDQE10-Q48-D24-DIN	85 °C	-40 °C	CE cURus	24 V		208 mA	208 mA		87 %			10 W		1.5 kV	Remote On/Off	ITE (Commercial)	2	76 mm	22.2 mm			31.5 mm		-24 V		DC	2.99 in	1.24 in	0.87 in	18 V	75 V
CUI Inc. PDQE10-Q48-S15-T	85 °C	-40 °C	EN	15 V	55024 55032			Chassis Mount	87 %		75 V	10 W	Enclosed	1.5 kV		ITE (Commercial)	1	76 mm	21.2 mm			31.5 mm			18 V		2.99 in	1.24 in	0.84 "			667 mA
CUI Inc. PDQE10-Q48-D24-T	85 °C	-40 °C	EN	24 V	55024 55032	208 mA	208 mA	Chassis Mount	87 %		75 V	10 W	Enclosed	1.5 kV		ITE (Commercial)	2	76 mm	21.2 mm			31.5 mm		-24 V	18 V		2.99 in	1.24 in	0.84 "
CUI Inc. PDQE10-Q48-D12-T	85 °C	-40 °C	EN	12 V	55024 55032			Chassis Mount	87 %		75 V	10 W	Enclosed	1.5 kV		ITE (Commercial)	2	76 mm	21.2 mm			31.5 mm		-12 V	18 V		2.99 in	1.24 in	0.84 "			416 mA
CUI Inc. PDQE10-Q24-D15-D	85 °C	-40 °C	CB Scheme EN IEC UL	15 V	55024 55032 Class A 60950-1	333 mA	333 mA	Through Hole	87 %	6-DIP Module	36 V	10 W	Isolated Module	1.5 kV	OCP OVP Remote On/Off SCP	ITE (Commercial)	2	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	-15 V	9 V
CUI Inc. PDQE10-Q48-D5-D	85 °C	-40 °C	CB Scheme EN IEC UL	5 V	55024 55032 Class A 60950-1	1 A	1 A	Through Hole	83 %	6-DIP Module	75 V	10 W	Isolated Module	1.5 kV	OCP OVP Remote On/Off SCP	ITE (Commercial)	2	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	-5 V	18 V
CUI Inc. PDQE10-Q24-D5-T	85 °C	-40 °C	CB Scheme EN IEC UL	5 V	55024 55032 Class A 60950-1	1 A	1 A	Chassis Mount	83 %		36 V	10 W	Enclosed	1.5 kV		ITE (Commercial)	2	76 mm	21.2 mm			31.5 mm		-5 V	9 V		2.99 in	1.24 in	0.84 "
CUI Inc. PDQE10-Q24-D24-T	85 °C	-40 °C	CB Scheme EN IEC UL	24 V	55024 55032 Class A 60950-1	208 mA	208 mA	Chassis Mount	87 %		36 V	10 W	Enclosed	1.5 kV		ITE (Commercial)	2	76 mm	21.2 mm			31.5 mm		-24 V	9 V		2.99 in	1.24 in	0.84 "
CUI Inc. PDQE10-Q48-D5-T	85 °C	-40 °C	EN	5 V	55024 55032	1 A	1 A	Chassis Mount	83 %		75 V	10 W	Enclosed	1.5 kV		ITE (Commercial)	2	76 mm	21.2 mm			31.5 mm		-5 V	18 V		2.99 in	1.24 in	0.84 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.64

Description

General part information

PDQE10 Series

DC/DC DIN RAIL SUPPLY +/-24V 10W
