A-1PL-081-500B2
ActiveAmphenol RF
CBL ASSY U.FL UMCC PLG-PL 19.69"
Deep-Dive with AI
Search across all available documentation for this part.
A-1PL-081-500B2
ActiveAmphenol RF
CBL ASSY U.FL UMCC PLG-PL 19.69"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A-1PL-081-500B2 |
|---|---|
| 1st Connector | U.FL (UMCC), AMC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | AMC Plug, U.FL (UMCC), Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | Coaxial Cable |
| Cable Type [diameter] | 0.81 mm |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 50 cm |
| Length | 19.69 " |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | AMC, AMC to U.FL (UMCC), U.FL (UMCC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 4.99 | |
Description
General part information
A-1PL-081 Series

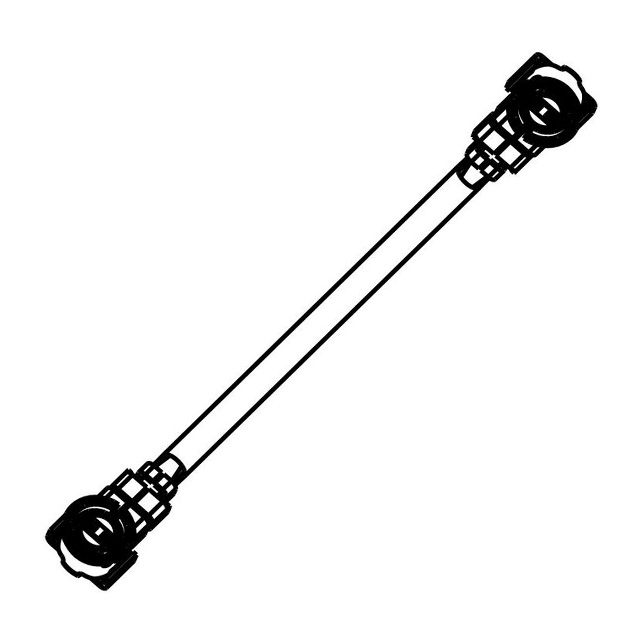

Cable Assembly Coaxial U.FL (UMCC), AMC to U.FL (UMCC), AMC 0.81mm OD Coaxial Cable 19.69" (500.00mm)
