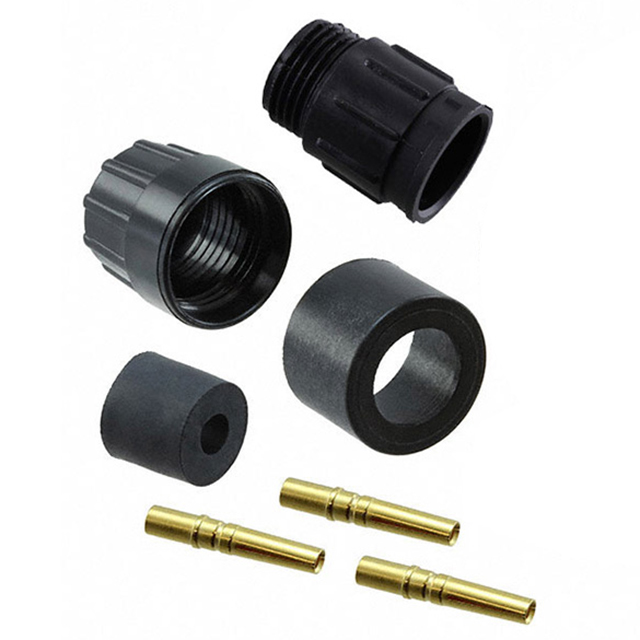

5180-3SG-330

Active

Conxall/Switchcraft

CONN RCPT FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5180-3SG-330

Active

Conxall/Switchcraft

CONN RCPT FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5180-3SG-330

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.32 in
Cable Opening [Max] [diameter]	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm
Cable Opening [Min] [diameter]	0.3 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

5180-3SG Series

Part	Color	Contact Finish - Mating	Primary Material	Features	Orientation	Contact Material	Shielding	Termination	Ingress Protection	Voltage Rating	Backshell Material, Plating	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5180-3SG-330	Black	Gold	Plastic	Backshell	Keyed	Brass	Unshielded	Crimp	Weathertight	600 V	Nylon Polyamide (PA)	Bayonet Lock	Receptacle Female Sockets	-40 °C	115 °C	7.62 mm	0.32 in	8.13 mm	0.3 in	Free Hanging (In-Line)
Conxall/Switchcraft 5180-3SG-524	Black	Gold	Plastic	Backshell Cable Clamp	Keyed	Brass	Unshielded	Crimp	Weathertight	600 V	Nylon Polyamide (PA)	Bayonet Lock	Receptacle Female Sockets	-40 °C	115 °C	6.1 mm	0.27 in		0.24 in	Free Hanging (In-Line)	6.86 mm
Conxall/Switchcraft 5180-3SG-515	Black	Gold	Plastic	Backshell Cable Clamp	Keyed	Brass	Unshielded	Crimp	Weathertight	600 V	Nylon Polyamide (PA)	Bayonet Lock	Receptacle Female Sockets	-40 °C	115 °C					Free Hanging (In-Line)		0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 5180-3SG-318	Black	Gold	Plastic	Backshell	Keyed	Brass	Unshielded	Crimp	Weathertight	600 V	Nylon Polyamide (PA)	Bayonet Lock	Receptacle Female Sockets	-40 °C	115 °C					Free Hanging (In-Line)				4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5180-3SG-315	Black	Gold	Plastic	Backshell	Keyed	Brass	Unshielded	Crimp	Weathertight	600 V	Nylon Polyamide (PA)	Bayonet Lock	Receptacle Female Sockets	-40 °C	115 °C					Free Hanging (In-Line)		0.15 in 0.17 in	3.81 mm 4.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.96

Description

General part information

5180-3SG Series

3 Position Circular Connector Receptacle, Female Sockets Crimp
