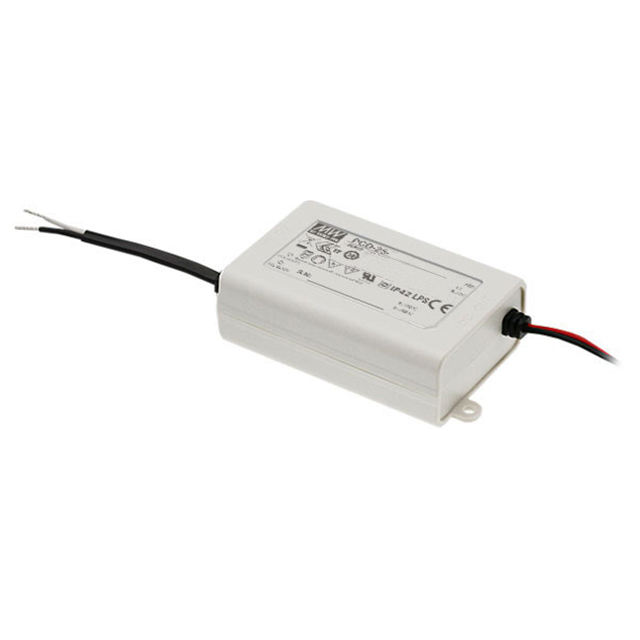

PCD-25-1400A
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 12-18V 1.4A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCD-25-1400A
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 12-18V 1.4A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCD-25-1400A |
|---|---|
| Current - Output (Max) [Max] | 1.4 A |
| Dimming | TRIAC |
| Efficiency | 80 % |
| Features | OTP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 25 W |
| Ratings | IP42 |
| Size / Dimension [x] | 3.31 " |
| Size / Dimension [x] | 84 mm |
| Size / Dimension [y] | 57 mm |
| Size / Dimension [y] | 2.24 " |
| Size / Dimension [z] | 29.5 mm |
| Size / Dimension [z] | 1.16 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 135 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 18 V |
| Voltage - Output [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.55 | |
| 5 | $ 17.20 | |||
| 10 | $ 16.64 | |||
| 25 | $ 15.94 | |||
Description
General part information
PCD-25 Series
1.4A 12 ~ 18V Constant Current LED Driver AC DC Converter Topology 1 Output
